Segway UT10 Crew U5 Cylinder sub-assembly
CA$0.91
In stock
SKU
Segway UT10 Crew U5 Cylinder sub-assembly
Segway UT10 Crew U5 Cylinder sub-assembly Parts:
| No. | Part Number | Part Name |
| 1 | F01G00700001 | Qil Pressure Sensor |
| 2 | GBT001192001 | Cylindrical Pin 6×10 |
| 3 | F02A30010001 | Cylinder Head Gasket |
| 4 | F01000005001 | Bolt M6×25 |
| 5 | F02A30001003 | Cylinder （ⅰ） |
| 5 | F02A30001004 | Cylinder （ⅱ） |
| 6 | F02A30002001 | Cylinder Gasket |

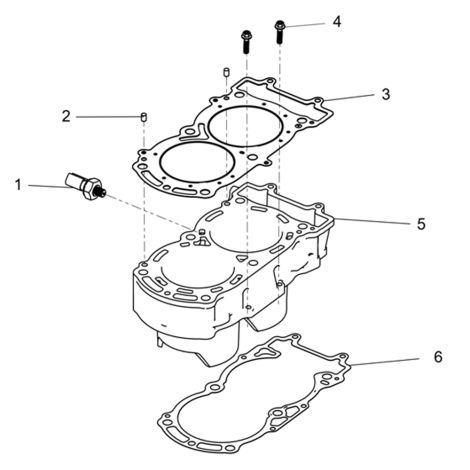

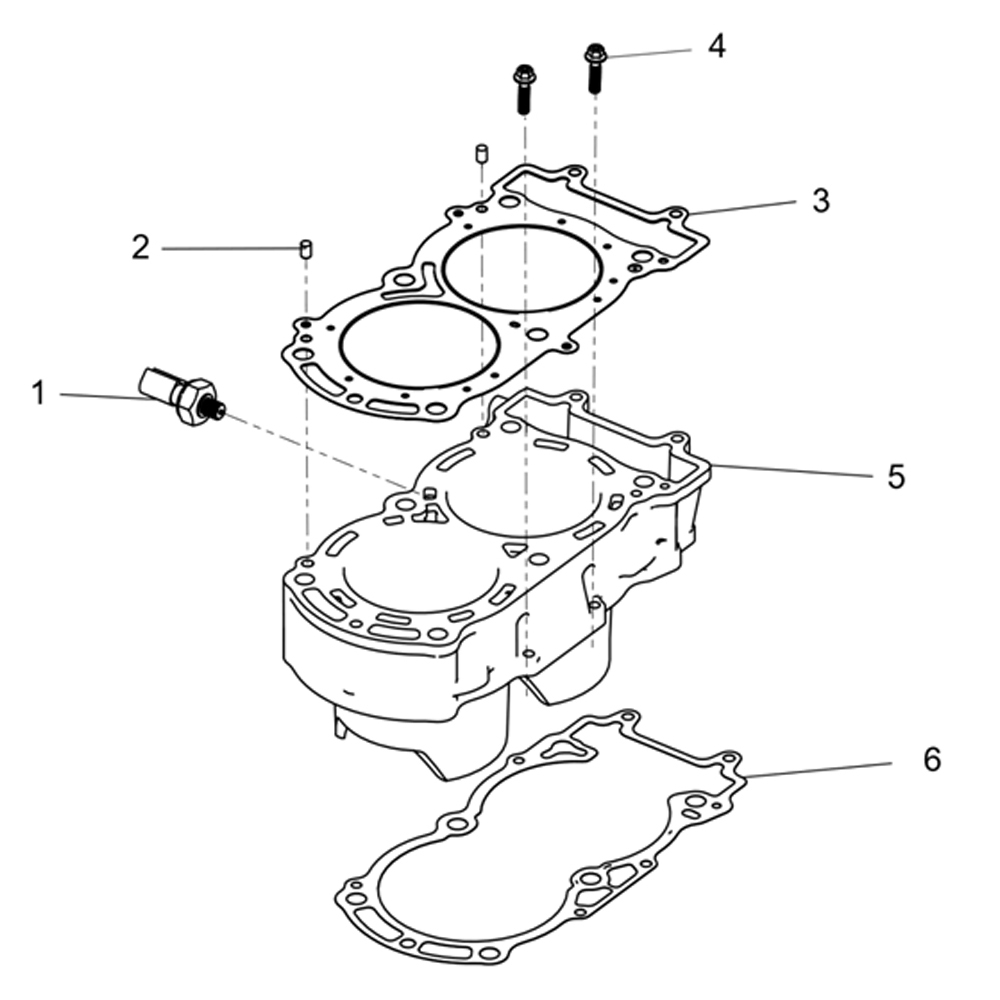

Segway UT10 Crew U5 Cylinder sub-assembly Diagram:
