Name: Segway UT10 Crew U5 Dashboard
Price: 0.91 CAD
Availability: InStock

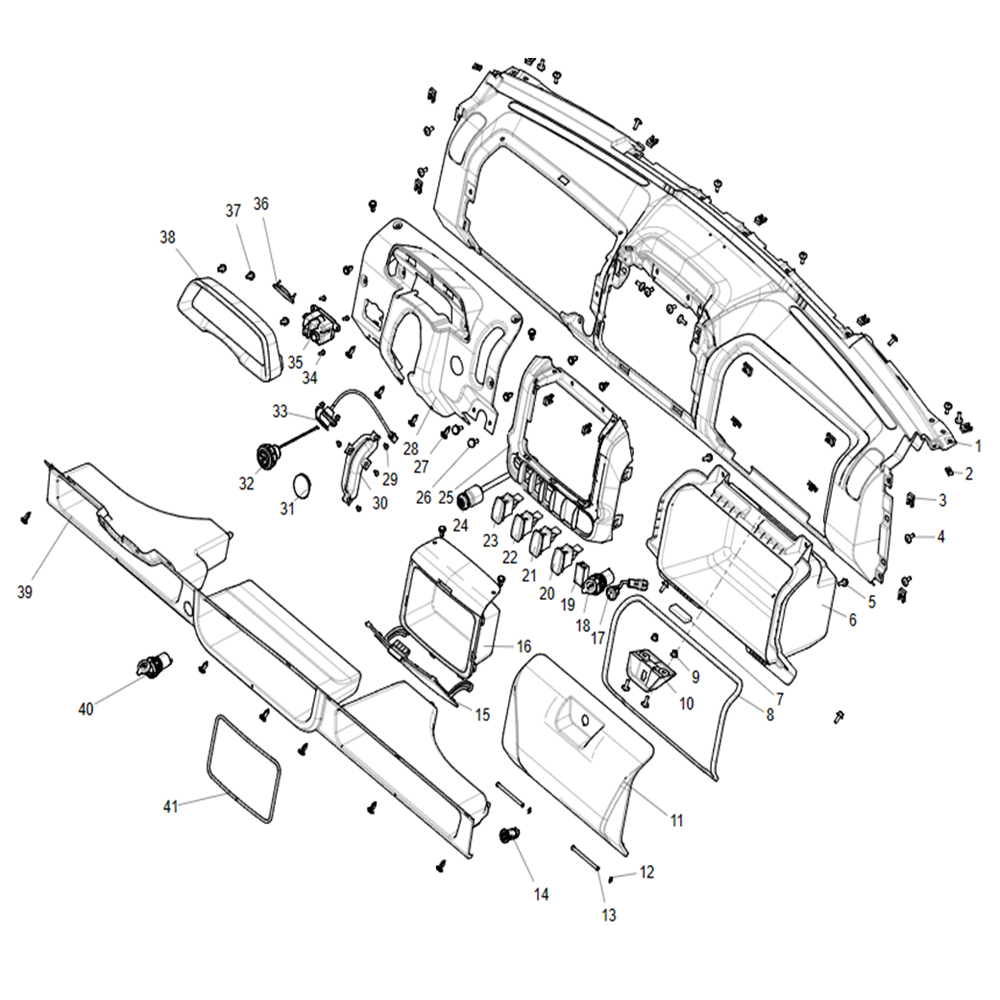

Segway UT10 Crew U5 Dashboard Parts:

No.	Part Number	Part Name
1	U01-H111010-0B0-00	Dashboard(Upper Body)
2	T04000002003	4.2 Self-tapping Nail Splint
3	T04000002001	M6 Nut Clip
4	T03000007002	Hexagon Socket Large Pan Head Bolt M6×16
5	GBT005789007	Bolt M6×16
6	U01-H213001-0B0-00	Passenger Compartment Body
7	U01H21307001	U01 Usb Fixing Rubber Strip For Passenger
8	U01H21308001	U01 Passenger Compartment Seal
9	GBT061831002	Nut M6
10	U09-H213001-0B0-00	Latch
11	U01-H213002-0B0-00	Storage Box Cover
12	GB0000896001	Circlip 5
13	U01H21303001	U01 Rotating Shaft Of Passenger Compartment
14	U09-M570011-000-00	Power Lock Kit, EU
15	U01H21602001	U01 Cover Or Medium Storage Box Pp Black
16	U01H21601001	U01 Body Or Medium Storage Box Pp Black
18	U01M04300001	U01 USB Power Output Seat
19	S01H11000001	Cover
20	S01M51500001	Torque Switch
21	S01M51800001	Mode Switch

No.	Part Number	Part Name
22	S01M51400001	Emergency Switch
23	S01M51600001	Flameout Switch
24	U09-M570011-000-00	Power Lock Kit,eu
25	U01-H214010-XB0-00	U01 Switch Panel
26	T03000007001	Large Pan Head Hexagon Socket Bolt M6×20
27	T04000003001	Expansion Buckle Component
28	U01-H211001-0B0-01	Instrument Cover
29	GBT000845009	Screw St4.2×13
30	U01H21112001	U01 Waterroof Rubber Of Gear Lever Pp Bl
31	U01H21113001	U01 Star Button Plug
32	U01M56000001	U01 Star Button Assy
33	U01M05300001	U01 Winch Switch Socket Black
34	GBT000845010	Screw St4.2×16
35	U01-M550000-000-01	2/4 Wd And Rear Diff Switch
36	U01H21114001	Capstan Socket Plug
37	GBT005789006	Hexagon Flange Bolt M6×12
38	U03-M310001-000-00	Instrument Assy Tft
39	U01H21201001	U01 Lower Compartment Of Central Control
40	U01M04200001	U01 12v Power Output Seat
41	U01H21606001	Storage Box Sealing Strip(Mid)
