Segway UT10 Crew U5 Exhaust Pipe Assembly
CA$0.91
In stock
SKU
Segway UT10 Crew U5 Exhaust Pipe Assembly
Segway UT10 Crew U5 Exhaust Pipe Assembly Parts:
| No. | Part Number | Part Name |
| 1 | U09-A300002-000-03 | Cockpit Heat Shield |
| 2 | U09-A310002-PB0-00 | Exhaust Elbow Welding Combination |
| 3 | U09-A350001-PB0-00 | Exhaust Pipe Cylinder Head Heat Shield |
| 4 | U09-A330002-000-00 | Tee Inner Heat Shield |
| 5 | U09-A330001-000-00 | Tee Outer Heat Shield |
| 6 | U09-A340001-PB0-00 | Heat Shield Under The Barrel Elbow |
| 7 | U09-A320003-PB0-00 | Exhaust Pipe Body Assembly |
| 8 | U09-A330001-PB0-00 | Heat Shield On Cylinder Elbow |
| 9 | U01-A3A3010-000-01 | Cylinder Hanging Liner |
| 10 | GBT005789019 | Hexagon Flange Bolt M8×40 |
| 11 | GBT005789062 | Bolt M10×1.25×70 |
| 13 | GBT005789016 | Hexagon Flange Bolt M8×25 |
| 14 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 15 | QCT000620007 | A-band, Transmission Hose 80 |
| 16 | U05A31001001 | U05 Graphite Seal Sleeve |
| 17 | T03000006002 | Screw M6×16 |
| 18 | A03A30007001 | Cap Nut |
| 19 | GBT166741060 | Bolt M6×16 |
| 20 | GB0000093001 | Spring Washer 6_stainless Steel |
| 21 | GBT000961002 | Plain Washer 6_large_grade A |
| 22 | A01A32004001 | Bolt, exhaust Pipe Connect |
| 23 | A01A32005001 | Spring, exhaust Pipe Install |

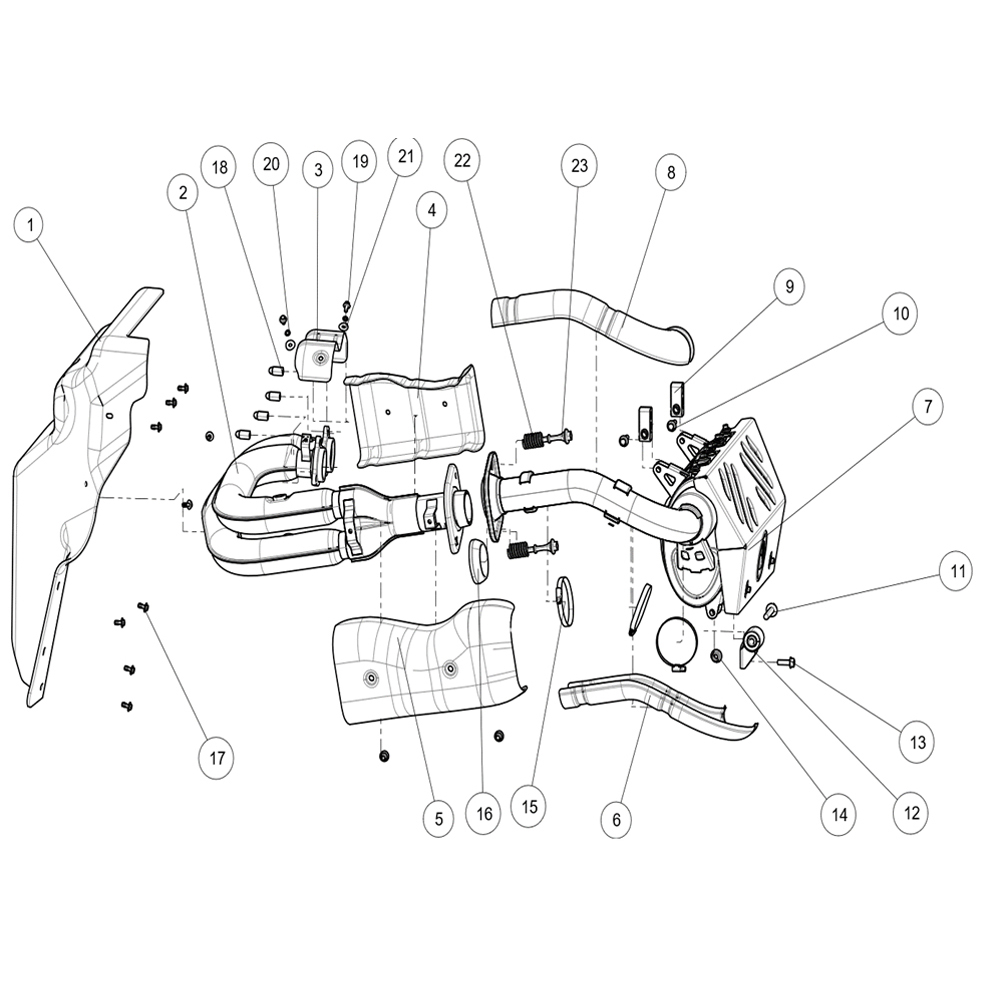

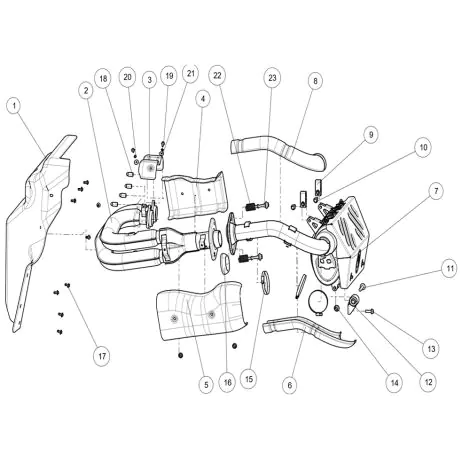

Segway UT10 Crew U5 Exhaust Pipe Assembly Diagram:
