Segway UT10 Crew U5 Frame Body
Segway UT10 Crew U5 Frame Body Parts:
| No. | Part Number | Part Name |
| 1 | U03-C112000-FB0-00 | Top Beam Lower Front Right Weld Assy-black |
| 1 | U03-C112000-FG0-00 | Top Beam Lower Front Right Weld Assy-green |
| 1 | U03-C112000-FR0-00 | Top Beam Lower Front Right Weld Assy-red |
| 2 | U03-C117000-DB0-00 | B-pillar Connection Assy(Black) |
| 3 | U01C10001002 | U01 Top Bar Rear Lower Support Pipe |
| 4 | U05C00001003 | U05 A-pillar Lower Rignt Soleplate_red |
| 4 | U05C00001004 | U05 A-pillar Lower Rignt Soleplate_green |
| 4 | U05C00001005 | U05 A-pillar Lower Rignt Soleplate_black |
| 5 | U03-C114000-FB0-01 | Top Beam Lower Rear Right Assy-black |
| 5 | U03-C114000-FG0-01 | Top Beam Lower Rear Right Assy-green |
| 5 | U03-C114000-FR0-01 | Top Beam Lower Rear Right Assy-red |
| 6 | U03-C118000-DB0-00 | C-pillar Connection Assy(Black) |
| 7 | U03-B010000-DB0-00 | Frame Welding Assy(Black) |
| 8 | U03-C111000-FB0-00 | Top Beam Lower Front Left Assy-black |
| 8 | U03-C111000-FG0-00 | Top Beam Lower Front Left Assy-green |
| 8 | U03-C111000-FR0-00 | Top Beam Lower Front Left Assy-red |
| 9 | U03-C113000-FB0-01 | Top Beam Lower Rear Left Assy-black |
| 9 | U03-C113000-FG0-01 | Top Beam Lower Rear Left Assy-green |
| 9 | U03-C113000-FR0-01 | Top Beam Lower Rear Left Assy-red |
| 10 | U05C00002003 | U05 A-pillar Lower Left Soleplate_red |
| 10 | U05C00002004 | U05 A-pillar Lower Left Soleplate_green |
| 10 | U05C00002005 | U05 A-pillar Lower Left Soleplate_black |
| 11 | GBT005789015 | Hexagon Flange Bolt M8×20 |
| 12 | GBT005789025 | Hexagon Flange Bolt M10×1.25×20 |
| 13 | GBT000701005 | Screws M10×1.25×35 |
| 14 | GBT005789028 | Bolt M10×1.25×35 |
| 15 | GBT005789027 | Hexagon Flange Bolt M12×1.25×30 |
| 16 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 17 | GBT005789029 | Hexagon Flange Bolt M10×1.25×40 |

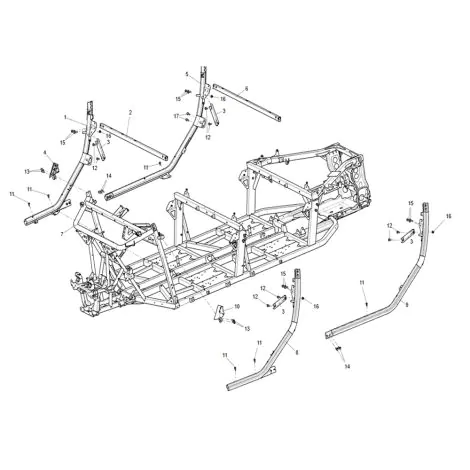

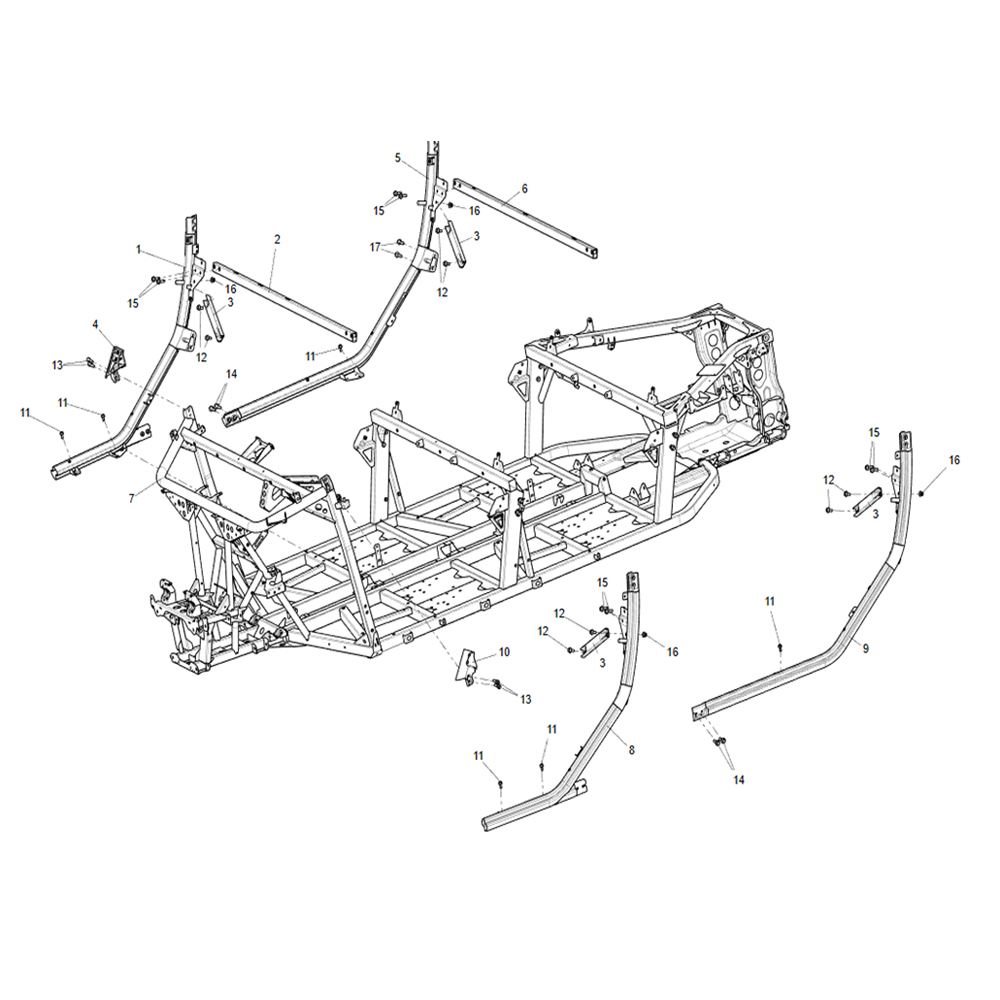

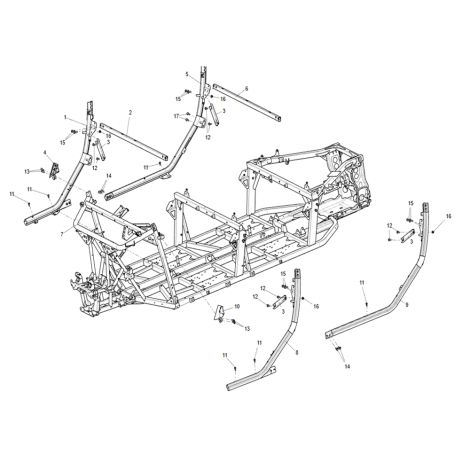

Segway UT10 Crew U5 Frame Body Diagram:
