Name: Segway UT10 Crew U5 Front Axle Assembly
Price: 0.91 CAD
Availability: InStock

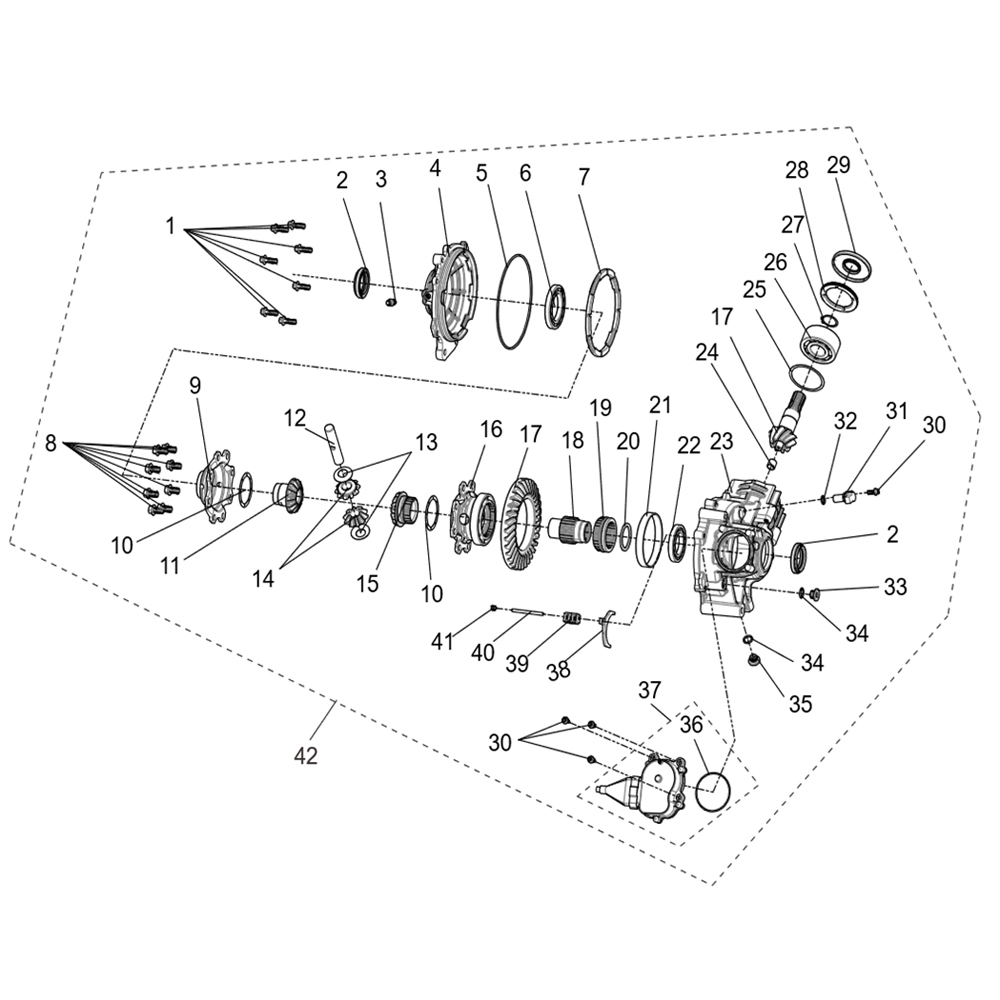

Segway UT10 Crew U5 Front Axle Assembly Parts:

No.	Part Number	Part Name
1	Q01F40201001	Hexagon Flange Bolt M8×25
2	D02P22202001	Oil Seal 38×55×7
3	Q01F41300001	Breathing Joint
4	Q03F40200002	Front Axle End Cover
5	Q01F40500001	Rectangular Gasket
6	GBT000276038	Bearing 16010
7	Q01F40400001	Limiting Liner
8	Q03F30800001	Hexagon Flange Bolt M10×1.0×18
9	Q03F30200001	Differential Cover
10	Q01R31600001	Axle Bevel Gasket(0.8)
10	Q01R31600002	Axle Bevel Gasket(1.0)
10	Q01R31600003	Axle Bevel Gasket(1.2)
11	Q03F30600000	Half Shaft Bevel Gear Ⅰ Assembly
12	Q03F30300001	Planetary Gear Shaft V
13	Q01R31700003	Planetary Gear Liner
14	Q01R30900003	Planetary Teeth
15	Q03F30700001	Half Shaft Bevel Gear Ii
16	Q03F30100001	Differential Housing
17	Q01F10100000	Drive&driven Bevel Gear Kit
18	Q03F30900000	Axle Shaft Assy
19	Q03F31000001	Combination Sets
20	Q03F31500001	Spacer 40.2×50×3
21	Q01F41000001	Bushingⅰ(φ97)
22	GBT000276015	Bearing 16008

No.	Part Number	Part Name
23	Q03F40100002	Front Axle Housing
24	Q01F41100001	Bushingⅱ(φ15)
25	Q01F10200001	Drive Bevel Gear Shims(0.3)
25	Q01F10200002	Drive Bevel Gear Shims(0.4)
25	Q01F10200003	Drive Bevel Gear Shims(0.5)
25	Q01F10200004	Drive Bevel Gear Shims(0.6)
25	Q01F10200005	Drive Bevel Gear Shims(0.7)
26	GBT000296001	Bearing 3306
27	GBT000894012	Circlip 30
28	Q01F41200001	Nut M75×1.5×6-lh
29	Q03F40700001	Oil Seal 30×45×6.5
30	F01000002001	Bolt M6×16
31	Q01F50300001	Vehicle Speed Sensor Assembly
32	Q01F40900001	O-ring 12×2
33	F02C10008001	Screw Plug M14
34	F01G00005001	O-ring Seal 13.8×2.5
35	F01G00200001	Screw Plug M14 Assembly
36	Q03F40300001	O-ring 67.9×2.2
37	Q03F50100001	Front Axle Shift Motor Assembly
38	Q03F31100001	Shift Fork
39	Q03F31200001	Sliding Rack
40	Q03F31300001	Fork Shaft 5×65
41	Q03F31400001	Hexagon Screw M8×8
42	Q03F00000002	Front Axle Assy
