Segway UT10 Crew U5 Front Suspension Assembly
CA$0.91
In stock
SKU Segway UT10 Crew U5 Front Suspension Assembly
Segway UT10 Crew U5 Front Suspension Assembly Parts:
| No. |
Part Number |
Part Name |
| 1 |
U09D16100001 |
Front Balance Bar Assembly |
| 2 |
U01D26002001 |
U01 Rear Balance Bar Mounting Seat (Al) |
| 3 |
U01D16001001 |
U01 Front Balance Bar Buffer Chunks |
| 4 |
U09D16200001 |
Fl Balance Bar Ball Pin |
| 5 |
U09D16300001 |
Fr Balance Bar Ball Pin |
| 6 |
GBT061832001 |
2-non-metallic Hf Nut M10×1.25 |
| 7 |
GBT005789017 |
Hexagon Flange Bolt M8×30 |
| 8 |
GBT001152001 |
Glib M6 |
| 9 |
U03-D150000-0B0-00 |
Front Shock Absorber Assy |
| 9 |
U03-D150010-0B0-00 |
Front Shock Absorber Assy |
| 10 |
GBT005789032 |
Hexagon Flange Bolt M10×1.25×55 |
| 11 |
U03-D131003-FR0-00 |
Front Left Lower Rocker Arm (Red) |
| 11 |
U03-D131004-FG0-00 |
Front Left Lower Rocker Arm (Green) |
| 11 |
U03-D131005-FB0-00 |
Front Left Lower Rocker Arm (Black) |
| 12 |
U03-D141003-FR0-00 |
Front Right Lower Rocker Arm (Red) |
| 12 |
U03-D141004-FG0-00 |
Front Right Lower Rocker Arm (Green) |
| 12 |
U03-D141005-FB0-00 |
Front Right Lower Rocker Arm (Black) |
| 13 |
U01H12900001 |
Fl Lower A-arm Guard |
| 14 |
U01H13100001 |
Fr Lower A-arm Guard |
| 15 |
U01D11200001 |
U01 Pivot Pin |
| 16 |
GBT000894004 |
Circlip 34 |
| 17 |
GBT061832010 |
Nut M12×1.25 |
|
| No. |
Part Number |
Part Name |
| 18 |
U09D20008001 |
A-arm Dust Cover |
| 19 |
U09D20006001 |
A-arm Bushing |
| 20 |
U09D10001001 |
A-arm Sleeve |
| 21 |
GBT005789103 |
Bolt M12×1.25×90 |
| 22 |
GBT005789104 |
Bolt M12×1.25×95 |
| 23 |
U03-D111003-FR0-00 |
Front Left Upper Rocker(Red) |
| 23 |
U03-D111004-FG0-00 |
Front Left Upper Rocker(Green) |
| 23 |
U03-D111005-FB0-00 |
Front Left Upper Rocker(Black) |
| 24 |
U03-D121003-FR0-00 |
Front Right Upper Rocker(Red) |
| 24 |
U03-D121004-FG0-00 |
Front Right Upper Rocker(Green) |
| 24 |
U03-D121005-FB0-00 |
Front Right Upper Rocker(Black) |
| 25 |
T03000007002 |
Hexagon Socket Large Pan Head Bolt M6×16 |
| 26 |
U03-D100100-000-00 |
Front Left Steering Knuckle |
| 26a |
U01D10011001 |
U01 Front Left Steering Knuckle_black |
| 26b |
JBT010238002 |
Hub Bearing(Dac3006342-2zc1) |
| 26c |
GBT000893002 |
Circlip 63 |
| 27 |
U03-D100200-000-00 |
Front Right Steering Knuckle |
| 27a |
U01D10021001 |
Fr Knuckle |
| 28 |
U01D10001002 |
Brake Rotor Dust Shield |
| 29 |
GBT005789030 |
Bolt M10×1.25×45 |
| 30 |
T07000001007 |
90°grease Fitting |
|

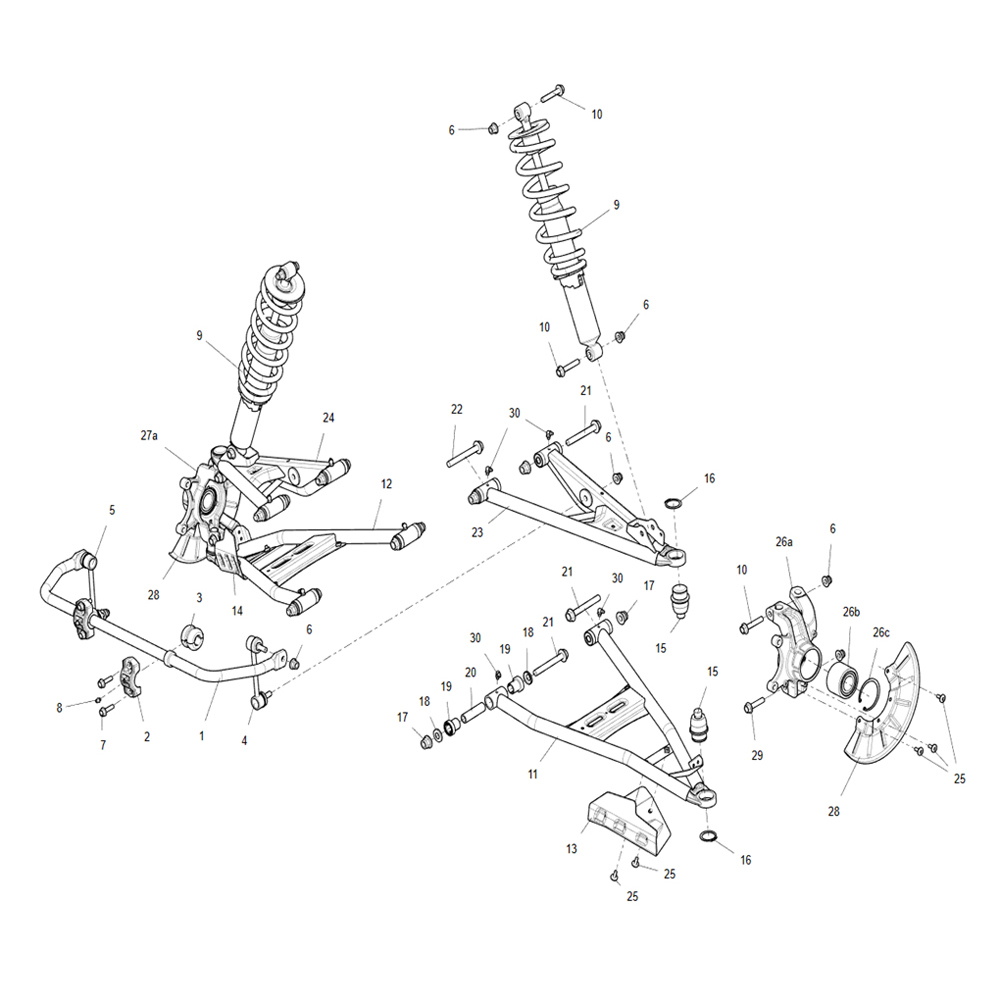

Segway UT10 Crew U5 Front Suspension Assembly Diagram:
