Segway UT10 Crew U5 Fuel Supply System
CA$0.91
In stock
SKU
Segway UT10 Crew U5 Fuel Supply System
SeSegway UT10 Crew U5 Fuel Supply System Parts:
| No. | Part Number | Part Name |
| 1 | S01A50106001 | Fuel Tank Gasket |
| 2 | U01A51100001 | Fuel Tank (Epa) |
| 3 | U01A50009001 | Fuel Tank Front And Rear Shock Pad |
| 4 | U01A50005001 | Fuel Tank Upper Shock Pad |
| 5 | U01M43000001 | Fuel Pump |
| 6 | U01A51400001 | Fuel Pump Sealing Ring |
| 7 | U01A51500001 | Fuel Pump Retainer Ring |
| 8 | U01A51305001 | Fuel Tank Heat-insulating Film |
| 9 | U01A51304001 | Oil Filling Pipe Heat-insulating Film |
| 10 | QCT000620006 | Worm Hose Clamp(70) |
| 11 | QCT006211005 | Clamp 16 |
| 12 | U05A51400001 | Fuel Filler Breather Pipe |
| 13 | U01A51301001 | Fuel Filler Pipe |
| 14 | U01A51302002 | Fuel Filler |
| 15 | T04000002001 | M6 Nut Clamp |
| 16 | T03000007002 | Hexagon Socket Large Pan Head Bolt M6×16 |
| 17 | S01A50105001 | Fuel Cap |
| 18 | QCT006211004 | Clamp 13 |
| 19 | U05A53002001 | Adsorption Pipe |
| 20 | U09A52000002 | Electric Fuel Injection Circuit Assy |

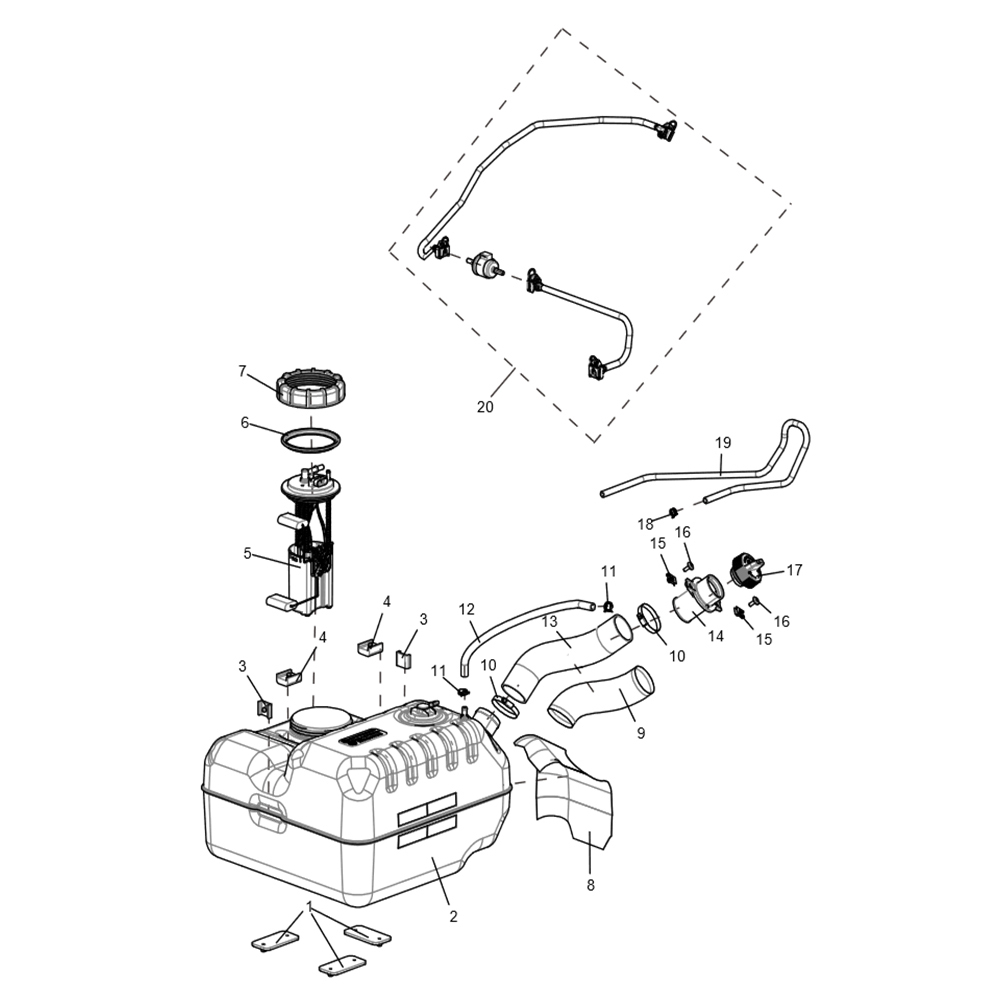

SeSegway UT10 Crew U5 Fuel Supply System Diagram:
