Name: Segway UT10 Crew U5 Harness Assy EU
Price: 0.91 CAD
Availability: InStock

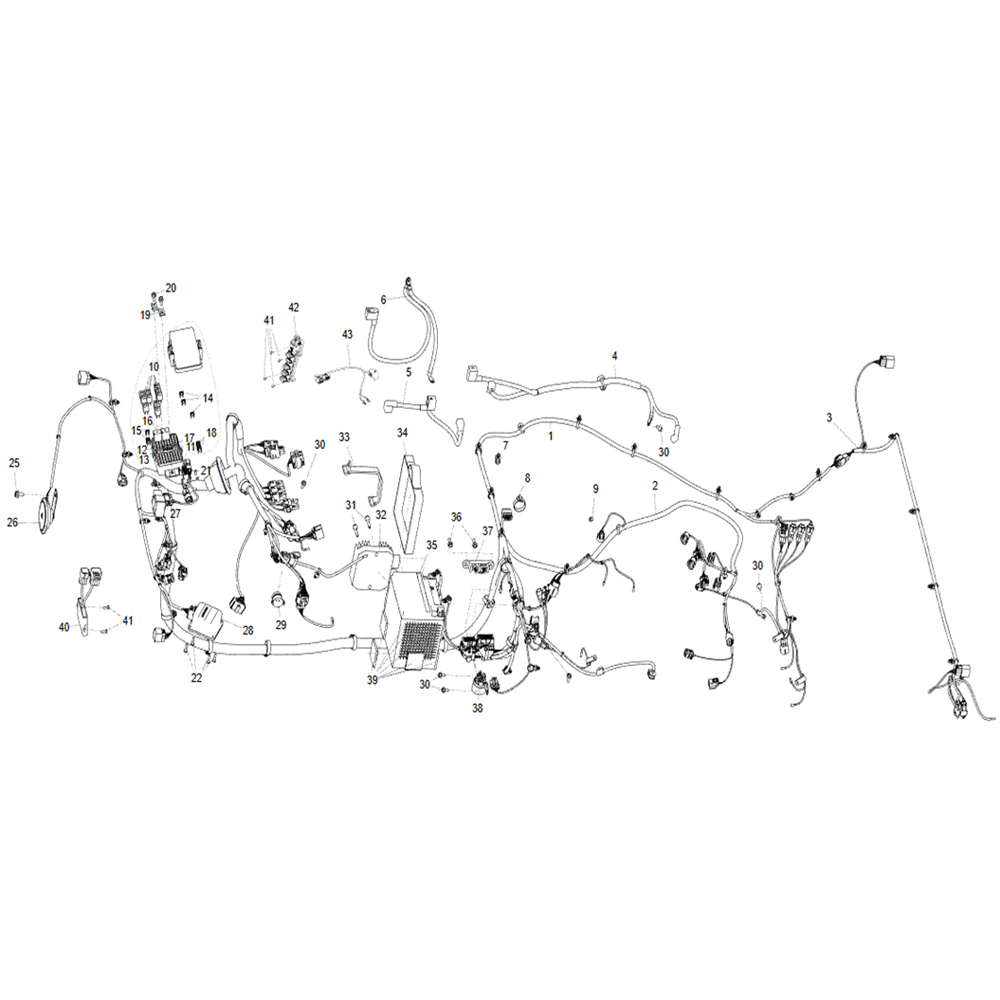

Segway UT10 Crew U5 Harness Assy EU Parts:

No.	Part Number	Part Name
1	U03-M111000-000-00	Main Cable_normal
2	U09-M121000-000-00	Efi Harness
3	U09M13100001	U09 Taillight Cable Assy
4	U09M14400001	U09 Starting Motor Cable Assy
5	U09M14200001	U09 Battery Postive Cable Assy
6	U09M14500001	U09 Battery Negative Cable Assy
7	T05000001004	Clip,round 200
8	T05000001005	Clip,square 200
9	T05000001007	Ribbon 2×120
10	T10100001016	Relay
11	T10100001008	Fuse Protector 50a
12	T10100001007	Fuse Protector 40a
13	T10100001015	Chip Fuse 25a
14	T10100001003	Clip Fuse 10a
15	T10100001004	Clip Fuse 15a
16	T10100001018	5-pin Relay
17	T10100001013	Clip Fuse 15a
18	T10100001001	Clip Fuse 5a
19	T04000002001	M6 Nut Clip
20	GBT005789007	Bolt M6×16
21	GBT000845009	Screw St4.2×13
22	GBT000818006	Screw M5×20
25	GBT005789014	Hexagon Flange Bolt M8×16
26	U01M02200001	U01 Horn

No.	Part Number	Part Name
27	S01-M041000-000-00	Flasher
28	S01M34000001	T-box(Europe)
28	S01M34000002	T-box(North America）
28	S01M34000003	T-box(Mexico)
28	S01M34000004	T-box(Australia,South America)
28	S01M34000005	T-box(Japan)
28	S01M34000006	T-box(Korea)
28	S01M34000007	T-box(China.India)
29	U01M33000001	U01 Buzzer
30	GBT005789006	Hexagon Flange Bolt M6×12
31	GBT005789011	Hexagon Flange Bolt M6×35
32	A01M04300001	Rectifier
33	S01H20200001	Battery Fixing Belt
34	T10100001017	32ah Battery Belt
35	A01M04500001	Battery 32ah
36	GBT005789008	Hexagon Flange Bolt M6×20
37	U01M04400001	U01 Binding Post
38	U09-M042000-000-00	Starting Relay
39	S01H21600001	Battery Foam Pad
40	S03M31100001	Instrument Control Module
41	GBT000845014	Cross Recessed Hexagon Screw St4.8×16
42	U09-M904600-000-00	Power Splitter
43	U09-M110002-000-00	Utv Rectifier Transfer Line

Segway UT10 Crew U5 Harness Assy EU
