Segway UT10 Crew U5 Intake System Assembly
CA$0.91
In stock
SKU
Segway UT10 Crew U5 Intake System Assembly
Segway UT10 Crew U5 Intake System Assembly Parts:
| No. | Part Number | Part Name |
| 1 | U09A21009001 | Air Filter Endcover |
| 2 | U09A21008001 | Air Filter Cover |
| 3 | S03-A207B00-000-02 | Air Filter |
| 4 | U09A21020001 | Air Filter Housing |
| 5 | S01A20705001 | Flanging Bush |
| 6 | A01A21006001 | Buffer Rubber Sleeve |
| 7 | S03A20706001 | Rubber Ring |
| 8 | QCT006211005 | Clamp 16 |
| 9 | U09-A211110-000-01 | Leaking Seal |
| 10 | U09A21100001 | Air Filter Assembly |
| 11 | T01000002001 | I-shaped Rubber Ring |
| 12 | GBT005789065 | Hexagon Flange Bolt M6×30 |
| 13 | QCT000620009 | Worm Hose Clamp (100) |
| 14 | U09A21005001 | Expansion Chanber Connecting Hose |
| 15 | U09A21010001 | Expansion Chamber |
| 16 | QCT000620006 | Worm Hose Clamp(70) |
| 17 | U09A21011001 | Throttle Body Connecting Hose |
| 18 | U09A22001001 | Transmission Exhaust Pipe |
| 19 | QCT006211003 | Clamp 11 |
| 20 | QCT006211011 | Clamp 26 |
| 21 | U09-A200200-000-02 | Intake Breather |
| 22 | QCT006211015 | Clamp 20 |
| 23 | QCT000620016 | A Type Worm Drive Hose Hoop 110 |
| 24 | U09A21002001 | Air Filter Inlet Pipe |
| 25 | U09-A210001-000-02 | Air Filter Inlet Hose |
| 26 | T04000002001 | M6 Nut Clamp |
| 27 | GBT005789007 | Bolt M6×16 |
| 28 | U09A21006001 | Air Filter Inlet Cap |

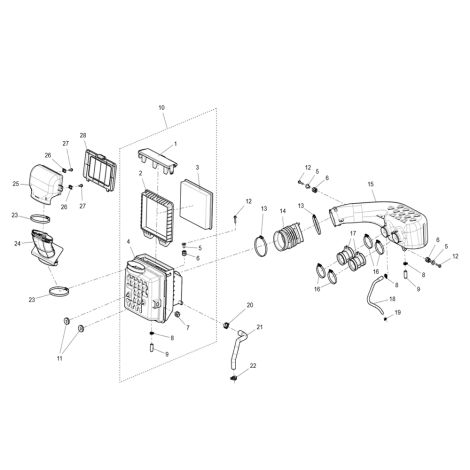

Segway UT10 Crew U5 Intake System Assembly Diagram:
