Segway UT10 Crew U5 Left Crankcase Cover Sub-assembly
As low as CA$0.91
In stock
Only %1 left
SKU
Segway UT10 Crew U5 Left Crankcase Cover Sub-assembly
Segway UT10 Crew U5 Left Crankcase Cover Sub-assembly Parts:
| No. | Part Number | Part Name |
| 1 | E02C20001001 | Left Crankcase Cover Gasket |
| 2 | F01000007001 | Bolt M6×35 |
| 3 | E02-C311000-000-00 | Magneto Stator Assembly |
| 4 | QCT006211009 | Steel Belt Elastic Hose Clamp22 |
| 5 | F02C20004001 | Oil Cooler Inlet Pipe |
| 6 | F01000001001 | Bolt M6×12 |
| 7 | F01H00002001 | Hose Clamp |
| 8 | QCT000620004 | A Type Worm Drive Hose Hoop 50 |
| 9 | F02C20005001 | Water Pump Outlet Pipe |
| 10 | E02-G005000-000-00 | Oil Filter |
| 11 | F01G00001001 | Oil Filter Adapter |
| 12 | GBT001192001 | Dowel Pin 6×10 |
| 13 | F01H00008001 | Water Pipe Adapter |
| 14 | E02C20105001 | Magneto Crimping Plate |
| 15 | GBT000893005 | Circlips 26 |
| 16 | GBT000276027 | Bearings 629-2rs |
| 17 | F01000004001 | Bolt M6×20 |
| 18 | E01K00300001 | Crank Position Sensor (Cps) |
| 19 | F01K00301001 | O-ring 17×2 |
| 21 | F01000005001 | Bolt M6×25 |
| 22 | F01K00003001 | Sensor Wire Clamp |
| 23 | E01C20104001 | Stator Cover Plug |
| 24 | E01C20107001 | O-ring 35×3.5 |
| 25 | F01000009001 | Bolt M6×55 |
| 26 | E02-C201000-000-03 | Left Crankcase Cover Assembly |
| 27 | E02C20003001 | Oil Passage Plug |
| 28 | F01F10003001 | Gasket 14×21×1.5 |

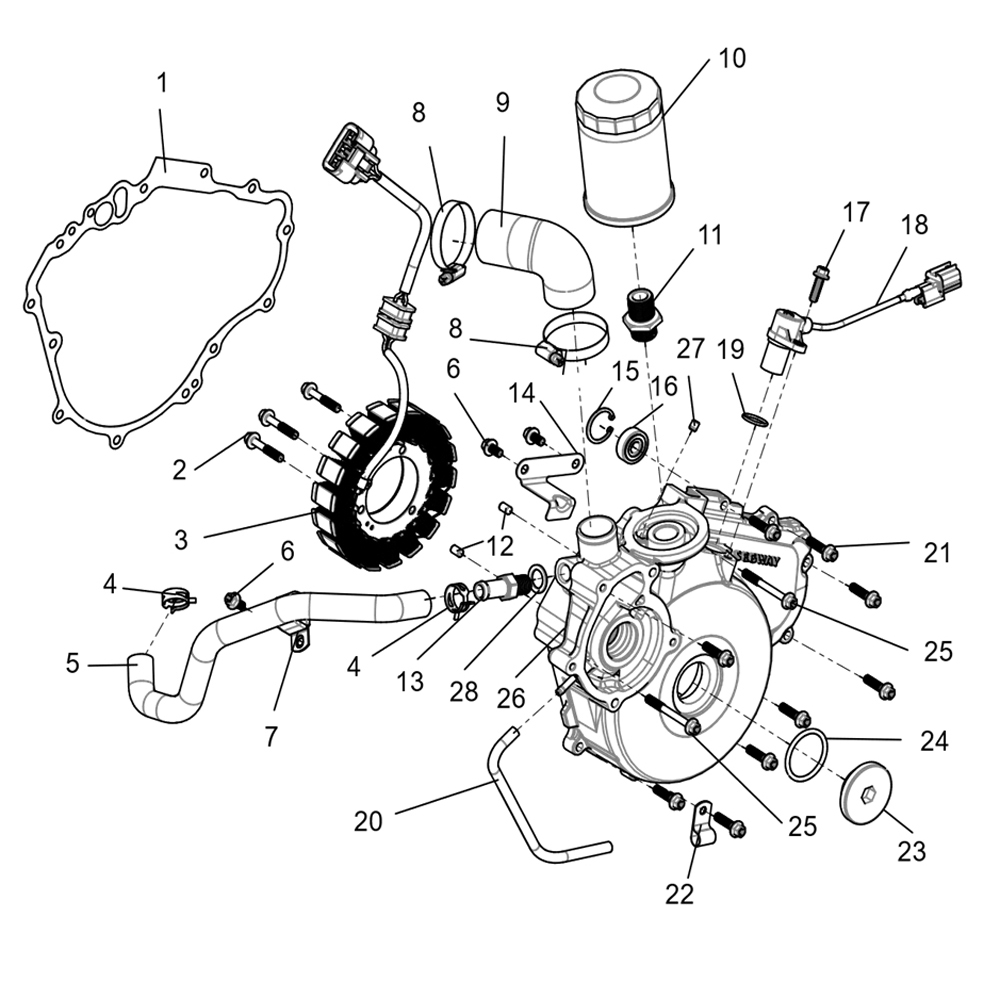

Segway UT10 Crew U5 Left Crankcase Cover Sub-assembly Diagram:
