Segway UT10 Crew U5 Metal Structural Parts
CA$0.91
In stock
SKU
Segway UT10 Crew U5 Metal Structural Parts
Segway UT10 Crew U5 Metal Structural Parts:
| No. | Part Number | Part Name |
| 1 | GBT005789019 | Hexagon Flange Bolt M8×40 |
| 2 | U03-C070000-DB0-00 | Front Bracket Assy(Black) |
| 3 | U09C24100002 | Headlight Bracket Right |
| 4 | GBT005789016 | Hexagon Flange Bolt M8×25 |
| 5 | U09C23100002 | Headlight Bracket Left |
| 6 | U03-C030000-DB0-00 | Front Seat Lower Bracket Assy |
| 7 | GBT005789015 | Hexagon Flange Bolt M8×20 |
| 8 | U01C00005002 | Right Handle Guard Tube(Black) |
| 9 | GBT005789020 | Hexagon Flange Bolt M8×45 |
| 10 | GBT061831003 | Nut M8 |
| 11 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 12 | U01-C000030-DB0-00 | Rectifier Mounting Bracket Assembly |
| 13 | U03-C032000-DB0-00 | Rear Seat Lower Bracket Assy |
| 14 | GBT061831002 | Nut M6 |
| 15 | U01C00060002 | Controller Support Lof |
| 16 | GBT005789012 | Hexagon Flange Bolt M6×40 |
| 1 | QCT000623002 | Lock Pin 12 |
| 18 | U01C00070002 | U01 Trailer Power Mounting Bracket Assy |
| 19 | S01C20300002 | Weld Drag (Black) |
| 20 | U01R21100001 | Tow Ball Head Assy_sgw51 |
| 21 | U01R21300002 | U01 Towing Hook Bolt 16 |
| 22 | U03-C040000-DB0-00 | Rear Left Handle Guard Tube |
| 23 | U01-C000040-DB0-00 | Starting Relay Bracket |
| 24 | U03-C060000-DB0-00 | Driver's Hand Guard Assy |
| 25 | U01C01280002 | T-box Mounting Plate |

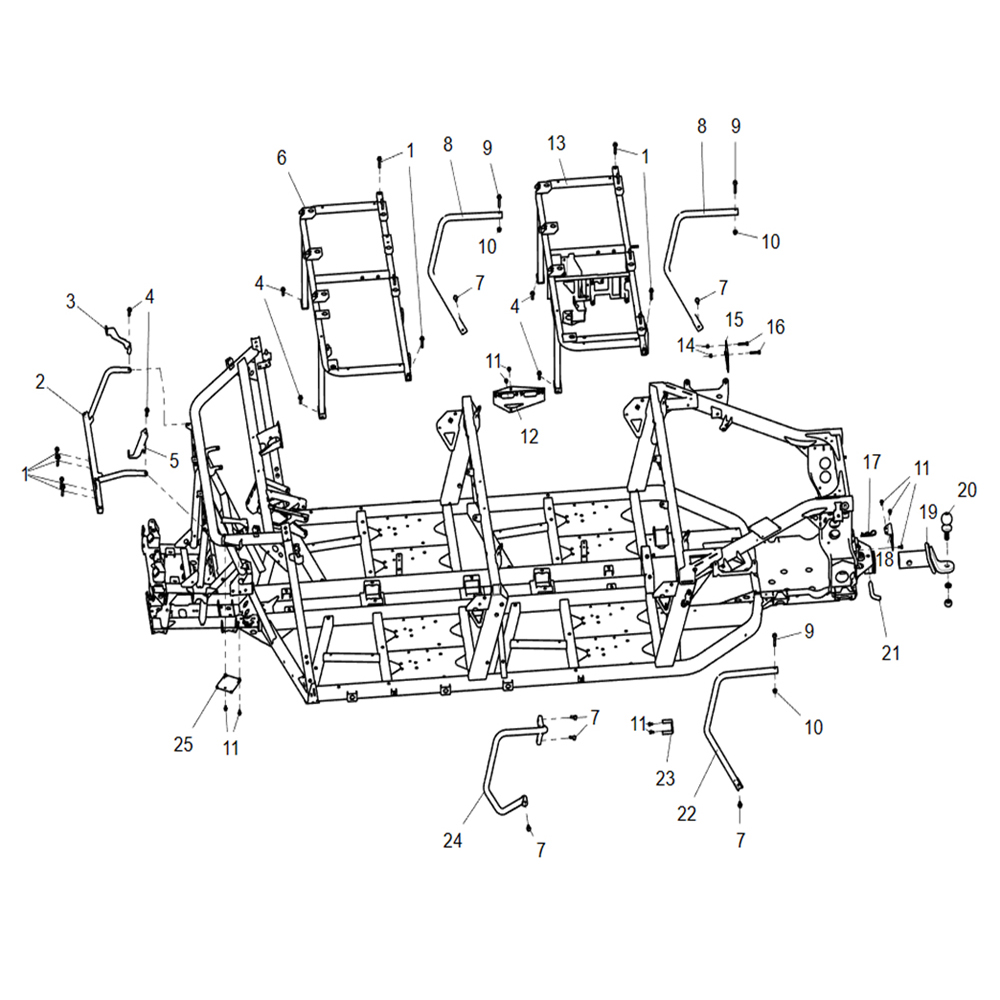

Segway UT10 Crew U5 Metal Structural Diagram:
