Segway UT10 Crew U5 Parking System
CA$0.91
In stock
SKU
Segway UT10 Crew U5 Parking System
Segway UT10 Crew U5 Parking System Parts:
| No. | Part Number | Part Name |
| 1 | U03-E212000-000-00 | Front Parking Cable Assy |
| 2 | U01E21100001 | U01 Hand Brake |
| 3 | U01E21120001 | U01_electronic Switch Assembiy |
| 4 | U01E21150001 | U01_hand Brake |
| 5 | U01E21001001 | U01 E-clip Spring |
| 6 | GBT005789015 | Hexagon Flange Bolt M8×20 |
| 7 | T03000007002 | Hexagon Socket Large Pan Head Bolt M6×16 |
| 8 | GBT005789007 | Bolt M6×16 |
| 9 | GBT000961002 | Plain Washer 6_large_grade A |
| 10 | GBT000091001 | Cotter 1.2×20 |
| 11 | GBT000971002 | Plain Washer 6 |
| 12 | U01E21040002 | U01 Parking Cable Distribution Plate |
| 13 | GBT000882002 | Pin Φ6×20 |
| 14 | U01E21030002 | U01 Parking Cable Lever |
| 15 | U03-E213000-000-00 | Parking Cable(Left) |
| 16 | U03-E214000-000-00 | Parking Cable(Right) |
| 17 | S05F3A001001 | Shift Cable Retaining Bracket |
| 18 | GBT000701014 | Screw M8×16 |
| 19 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 20 | U03-E215000-000-00 | Parking Cable Installation Clip |

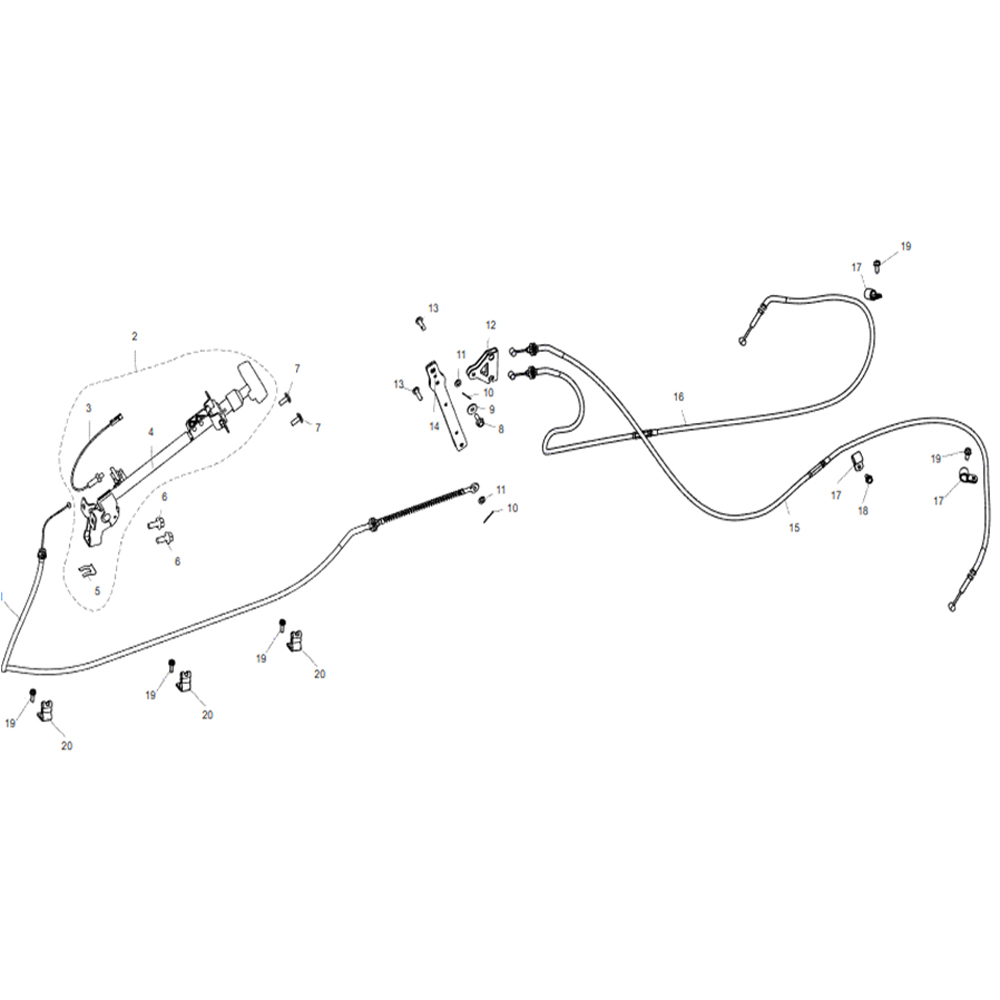

Segway UT10 Crew U5 Parking System Diagram:
