Segway UT10 Crew U5 Rear Cargo Box Assembly-EU Standard
CA$0.91
In stock
SKU
Segway UT10 Crew U5 Rear Cargo Box Assembly-EU Standard
Segway UT10 Crew U5 Rear Cargo Box Assembly-EU Standard Parts:
| No. | Part Number | Part Name |
| 1 | U01C30100002 | U09 Cargo Bracket-black |
| 2 | U01-C302000-DB0-00 | Cargo Box Lock Hook-black |
| 3 | U01C30206001 | Cargo Box Hook Fixing Block |
| 4.1 | U01-C302021-0B0-00 | Left Turnover Handle Of Container |
| 4.2 | U01-C302022-0B0-00 | Right Turnover Handle Of Container |
| 5 | U01C30205001 | Spring Of Cargo Box Lock Hook-right |
| 6 | U01C30204001 | Spring Of Cargo Box Lock Hook-left |
| 7 | GBT005789021 | Hexagon Flange Bolt M8×50 |
| 8 | GBT061831003 | Non-metallic Hexagon Flange Nut M8 |
| 9 | U01C30800001 | Cargo Cushion Block(With Nut M8) |
| 10 | U01C30001001 | Trunk Shaft Bushing-black |
| 11 | GBT005789142 | Bolt M12×1.25×50 |
| 12 | BG008820-10040-F01 | Pin 10×40 |
| 13 | QCT000623001 | Pin 8 |
| 14 | U01C31000001 | Cargo Bed Shock |
| 15 | U01C30600001 | Cargo Bed Limit Cable |
| 16 | U01C30400002 | Right Plate Of Cargo Box-black |
| 17 | U01C30300002 | Left Plate Of Cargo Box-black |
| 18 | GBT005789015 | Hexagon Flange Bolt M8×20 |
| 19 | U01H14120001 | Cargo Door Rubber |
| 20 | U03-C090000-FR0-00 | Rear Bumper_eu(Red) |
| 20 | U03-C090000-FG0-00 | Rear Bumper_eu(Green) |
| 20 | U03-C090000-FB0-00 | Rear Bumper_eu(Black) |
| 21 | U01H14121001 | Rear Bumper Pedal |
| 22 | T03000007002 | Hexagon Socket Mushroom Head Screw |
| 23 | U01C00080002 | Rear License Plate Bracket-black-eu |
| 24 | GBT005789007 | Bolt M6×16 |
| 25 | U01H14100002 | Cargo Box Assy White |
| 25 | U01H14100003 | Cargo Box Assy Black |
| 25 | U01H14100004 | Cargo Box Assy Gray |
| 25 | U01H14100005 | Cargo Box Assy Grassland Camouflage |

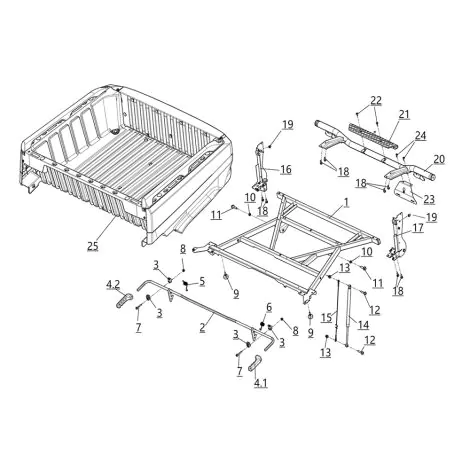

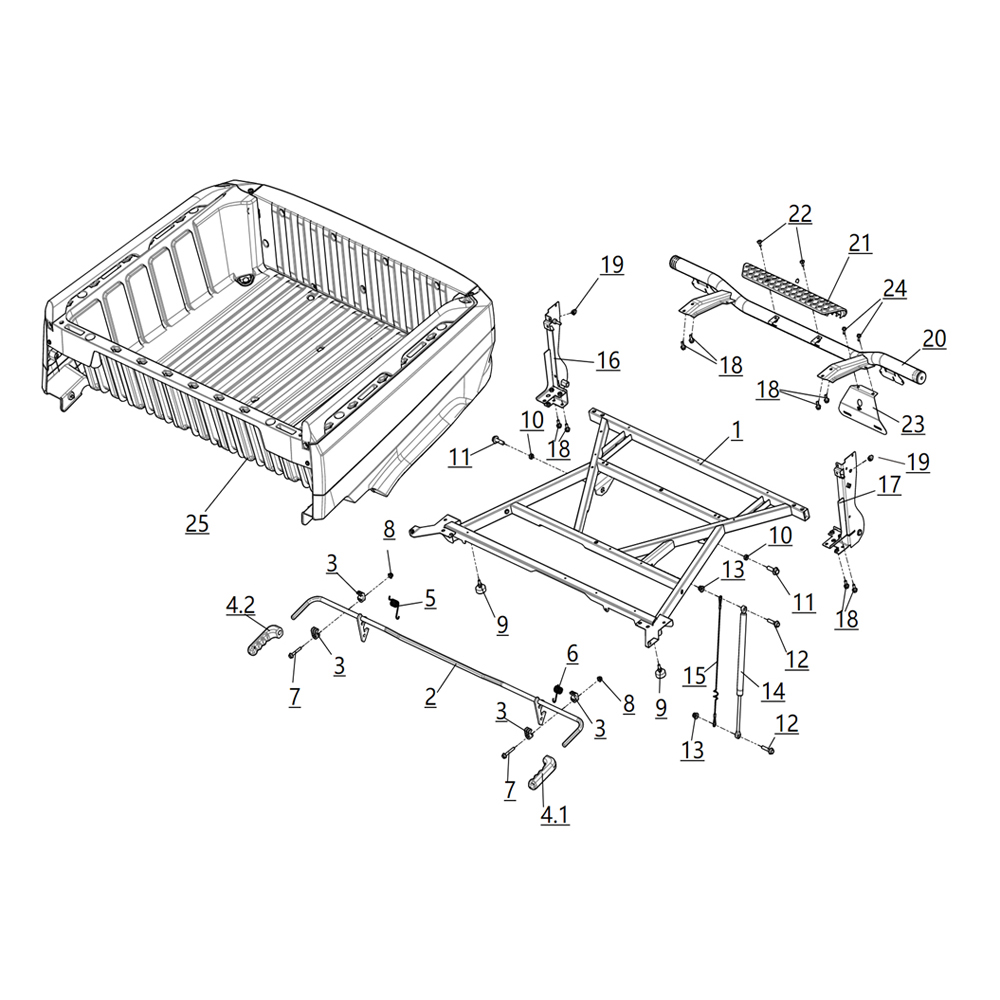

Segway UT10 Crew U5 Rear Cargo Box Assembly-EU Standard Diagram:
