Segway UT10 Crew U5 Rear Right Iron Door
CA$0.91
In stock
SKU
Segway UT10 Crew U5 Rear Right Iron Door
Segway UT10 Crew U5 Rear Right Iron Door Parts:
| No. | Part Number | Part Name |
| 1 | U03-C422000-FB0-00 | Right Rear Door Frame |
| 2 | GBT006170004 | Type 1 Hexagon Nut M8 |
| 3 | U03-H240103-0B0-00 | Rear Door Lower Rubber Block |
| 4 | U03-C400021-W00-01 | Rear Door Lock |
| 5 | GBT005789017 | Hexagon Flange Bolt M8×30 |
| 6 | U03-C452000-000-00 | Right Door Lock Assembly |
| 7 | T03000007002 | Hexagon Socket Large Pan Head Bolt M6×16 |
| 8 | U03-H252100-000-00 | Right Door Lock Cover |
| 9 | U03-H240102-0B0-00 | Rear Door Pad |
| 10 | U01F10001001 | U01 Bolt M6 |
| 11 | U03-C456000-000-00 | Door Cable |
| 12 | GBT061831003 | Nut M8 |
| 13 | U03-C457100-DB0-00 | Cable Support Assembly |
| 14 | U03-C439000-000-00 | Rear Right Lower Latch |
| 15 | U03-C438000-000-00 | Rear Right Upper Latch |
| 16 | GBT000971001 | Washer 8 |
| 17 | GBT005789131 | Hexagon Flange Bolt M8×20 |
| 18 | T03000008003 | Bolt M8×25 |
| 19 | T03000008001 | Bolt M8×35 |

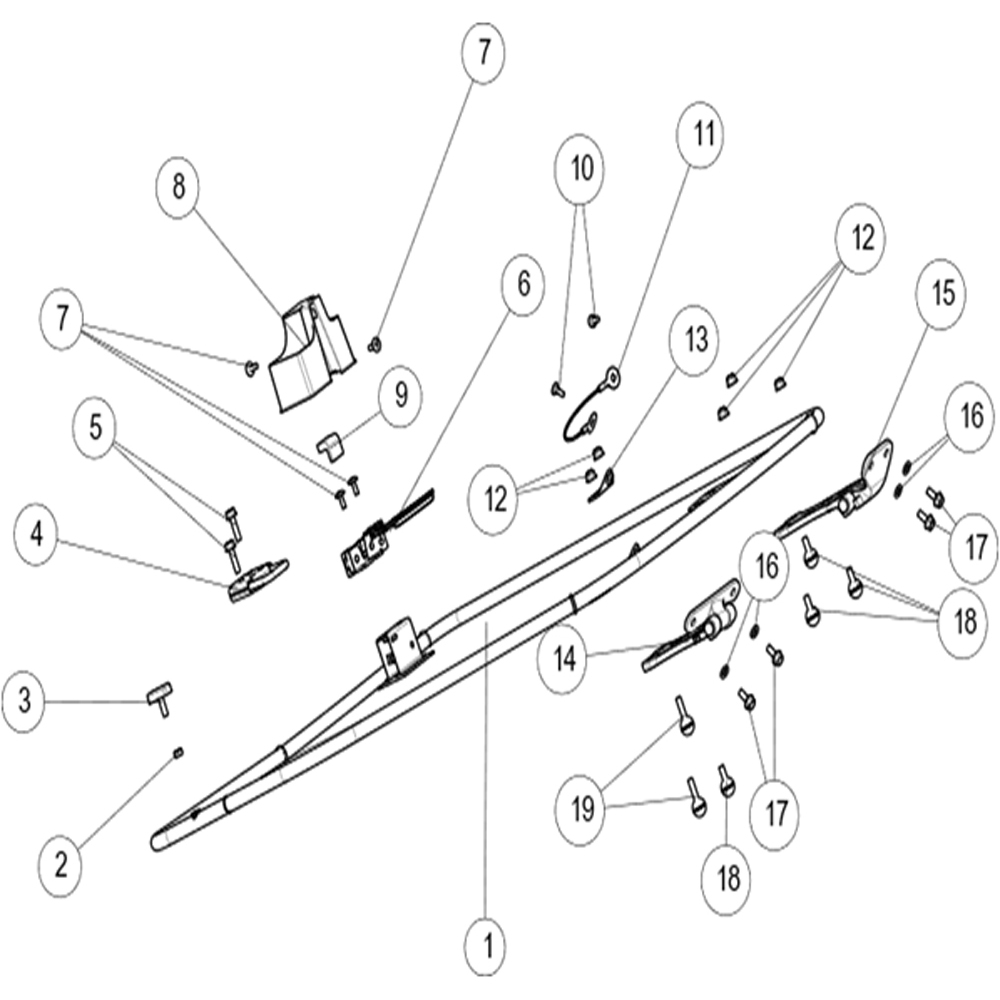

Segway UT10 Crew U5 Rear Right Iron Door Diagram:
