Segway UT10 Crew U5 Rear Suspension Assembly
CA$0.91
In stock
SKU Segway UT10 Crew U5 Rear Suspension Assembly
Segway UT10 Crew U5 Rear Suspension Assembly Parts:
| No. |
Part Number |
Part Name |
| 1 |
U09-D261001-FB0-00 |
Rear Balance Bar Assy (Solid Piece) |
| 2 |
U01D26002001 |
Rear Sway Bar Mounting Bracket |
| 3 |
U01D16001001 |
Front Balance Bar Buffer Block |
| 4 |
S01D10820001 |
Right Stabilizer Bar Ball Pin Assembly |
| 5 |
S01D10810001 |
Left Stabilizer Bar Ball Pin Assembly |
| 6 |
GBT061832001 |
2-non-metallic Hf Nut M10×1.25 |
| 7 |
GBT005789017 |
Hexagon Flange Bolt M8×30 |
| 8 |
GBT001152001 |
Glib M6 |
| 9 |
U03-D250000-0B0-00 |
Rear Shock Absorber Assembly |
| 9.1 |
U03-D250010-0B0-00 |
Rear Shock Absorber Assembly |
| 10 |
GBT005789032 |
Hexagon Flange Bolt M10×1.25×55 |
| 11 |
U03-D231003-FR0-00 |
Rear Left Lower Rocker Arm(Red) |
| 11 |
U03-D231004-FG0-00 |
Rear Left Lower Rocker Arm(Green) |
| 11 |
U03-D231005-FB0-00 |
Rear Left Lower Rocker Arm(Black) |
| 12 |
U03-D241003-FR0-00 |
Rear Right Lower Rocker Arm(Red) |
| 12 |
U03-D241004-FG0-00 |
Rear Right Lower Rocker Arm(Green) |
| 12 |
U03-D241005-FB0-00 |
Rear Right Lower Rocker Arm(Black) |
| 13 |
GBT061832010 |
Nut M12×1.25 |
| 14 |
U09D20008001 |
A-Arm Dust Cover |
| 15 |
U09D20006001 |
A-Arm Bushing |
| 16 |
U09D10001001 |
A-Arm Sleeve |
| 17 |
GBT005789103 |
Bolt M12×1.25×90 |
| 18 |
U09D20003001 |
U09 Rear Rocker Arm Liner 1 |
|
| No. |
Part Number |
Part Name |
| 19 |
GBT005789105 |
Bolt M12×1.25×120 |
| 20 |
U03-D211003-FR0-00 |
Rear Left Upper Rocker Arm(Red) |
| 20 |
U03-D211004-FG0-00 |
Rear Left Upper Rocker Arm(Green) |
| 20 |
U03-D211005-FB0-00 |
Rear Left Upper Rocker Arm(Black) |
| 21 |
U03-D221003-FR0-00 |
Rear Right Upper Rocker Arm(Red) |
| 21 |
U03-D221004-FG0-00 |
Rear Right Upper Rocker Arm(Green) |
| 21 |
U03-D221005-FB0-00 |
Rear Right Upper Rocker Arm(Black) |
| 22 |
U09D20005001 |
Upper A-arm Sleeve |
| 23 |
GBT005789106 |
Bolt M12×1.25×145 |
| 24 |
U09D20007001 |
Upper A-arm Bushing |
| 25 |
U09D20004001 |
Rear Hub Lower Sleeve |
| 26 |
GBT005789107 |
Bolt M12×1.25×170 |
| 27 |
U03-D200100-000-00 |
Rear Left Wheel Axle Support |
| 27a |
U09D20011001 |
Rl Hub |
| 27b |
JBT010238004 |
Hub Bearing(Dac4007237-2zc1) |
| 27c |
GBT000893006 |
Circlip 72 |
| 28 |
U03-D200200-000-00 |
Rear Right Wheel Axle Support |
| 28a |
U09D20021001 |
Rr Hub |
| 29 |
U09D20001002 |
Rear Brake Dust Shield |
| 30 |
T03000007002 |
Hexagon Socket Large Pan Head Bolt M6×16 |
| 31 |
GBT008892004 |
Nut M8 |
| 32 |
T07000001007 |
90°grease Fitting |
|

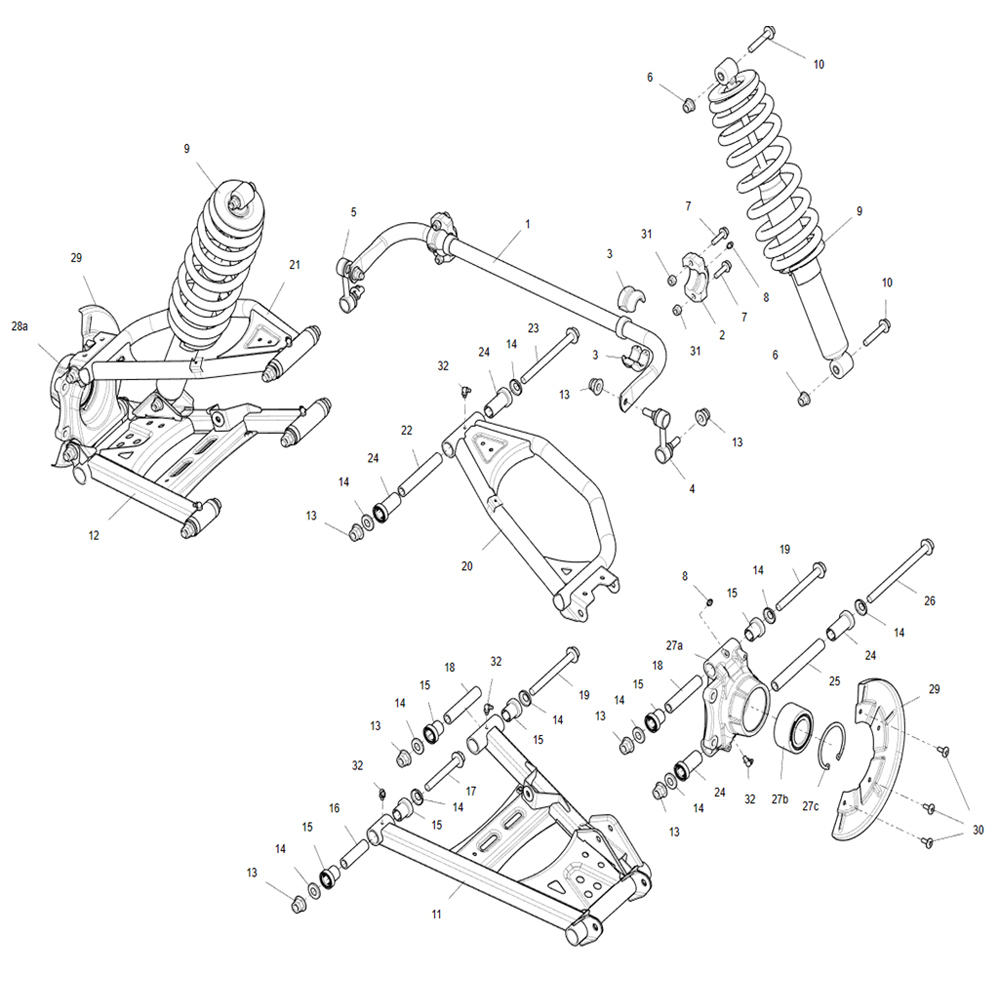

Segway UT10 Crew U5 Rear Suspension Assembly Diagram:
