Name: Segway UT10 Crew U5 Shift Control Components
Price: 0.91 CAD
Availability: InStock

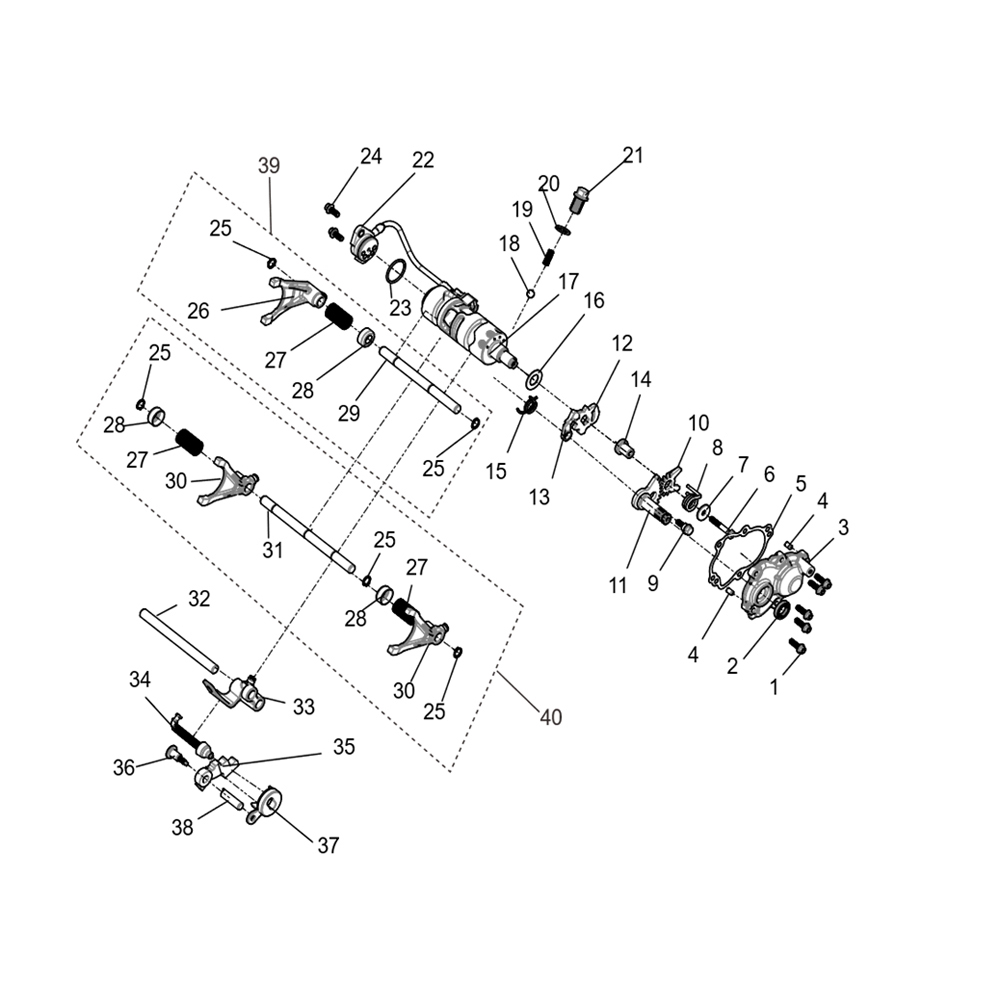

Segway UT10 Crew U5 Shift Control Components Parts:

No.	Part Number	Part Name
1	F01000004001	Bolt M6×20
2	F01F10011001	Oil Seal 15×25×5
3	F01F10009001	Shift shaft Cover
4	GBT001192001	Cylindrical Pin 6×10
5	F01F10010001	Shift shaft Cover Gasket
6	F01F10406001	Bolt M6×40
7	F01F10407001	Spacer 6.5×22×2
8	F01F10404001	Shift Torsion Spring
9	F01F10408001	Positioning Plate Bolt M6×21
10	F01F10403001	Shift Driven Gear
11	F01F10500001	Shift Shaft Assembly
12	F01F10402001	Shift Positioning Wheel
13	F01F10401001	Positioning Plate
14	F01F10405001	Bushing
15	F01F10006001	Shift Positioning Plate Spring
16	F01G00008001	Spacer 15×28×1
17	E02-F110001-000-03	Variable Speed Drum Assembly
18	GBT003081003	Steel Ball 9.5
19	F01F10001001	Gear Positioning Spring
20	F01F10003001	Aluminum Washer 14×21×1.5

No.	Part Number	Part Name
21	F01F10007001	Shift Positioning Bolt
22	F01F10700001	Gear Sensor Assembly
23	F01F10008001	O-ring 29.6×2.4
24	F01000002001	Bolt M6×16
25	GBT000894006	Circlip 12
26	E02F12100001	L Gear Shift Fork Assembly
27	F01F10202001	Shift Fork Spring
28	F01F10203001	Shift Fork Spring Seat
29	E02F12001001	L Gear Shift Fork Shaft
30	E02F13100001	Hr Gear Shift Fork Assembly
31	E02F13001001	H/r Gear Shift Fork Shaft
32	E02F14001001	Parking Guide Shaft
33	E02F14200001	Push Rod Seat Assembly
34	E02F14100001	Push Rod Assembly
35	E02F14002002	Parking Brake Arm
36	F01A40007002	Hexagon Socket Pan Head Stepped Bolts
37	E02F14003001	Push Rod Guide Seat
38	E02F14006001	Parking Arm Shaft
39	E02F12000001	L Gear Shift Fork Shaft Assembly
40	E02F13000001	Hr Gear Shift Fork Shaft Assembly
