Segway UT10 Crew U5 Starting System
Segway UT10 Crew U5 Starting System Parts:
| No. | Part Number | Part Name |
| 1 | E02-C312000-000-00 | Magneto Rotor Assembly |
| 2 | F02J20003001 | Double Gear Shaft |
| 3 | F02J20002001 | Flat Washer 12×24×1 |
| 4 | GBT012764001 | Needle Roller Bearing Hk121612 |
| 5 | F02J24001003 | Starting Duplex Gear |
| 6 | F02J21004003 | Starting Secondary Driving Gear |
| 7 | F02J21003003 | Starting Primary Driven Gear |
| 8 | E02F27003001 | Washer 26×44×3 |
| 9 | F01F20403001 | Nut M22×1 |
| 10 | F02J10000001 | Starter Motor |
| 11 | S03M14100001 | Starting Motor Wire |
| 12 | F01000007001 | Bolt M6×35 |
| 13 | F01000001001 | Bolt M6×12 |
| 14 | F02J23000001 | Starting Driven Gear Assembly |
| 15 | F02J22000001 | Starting Overrunning Clutch Assembly |
| 16 | GBT000701018 | Bolt M6×16 |

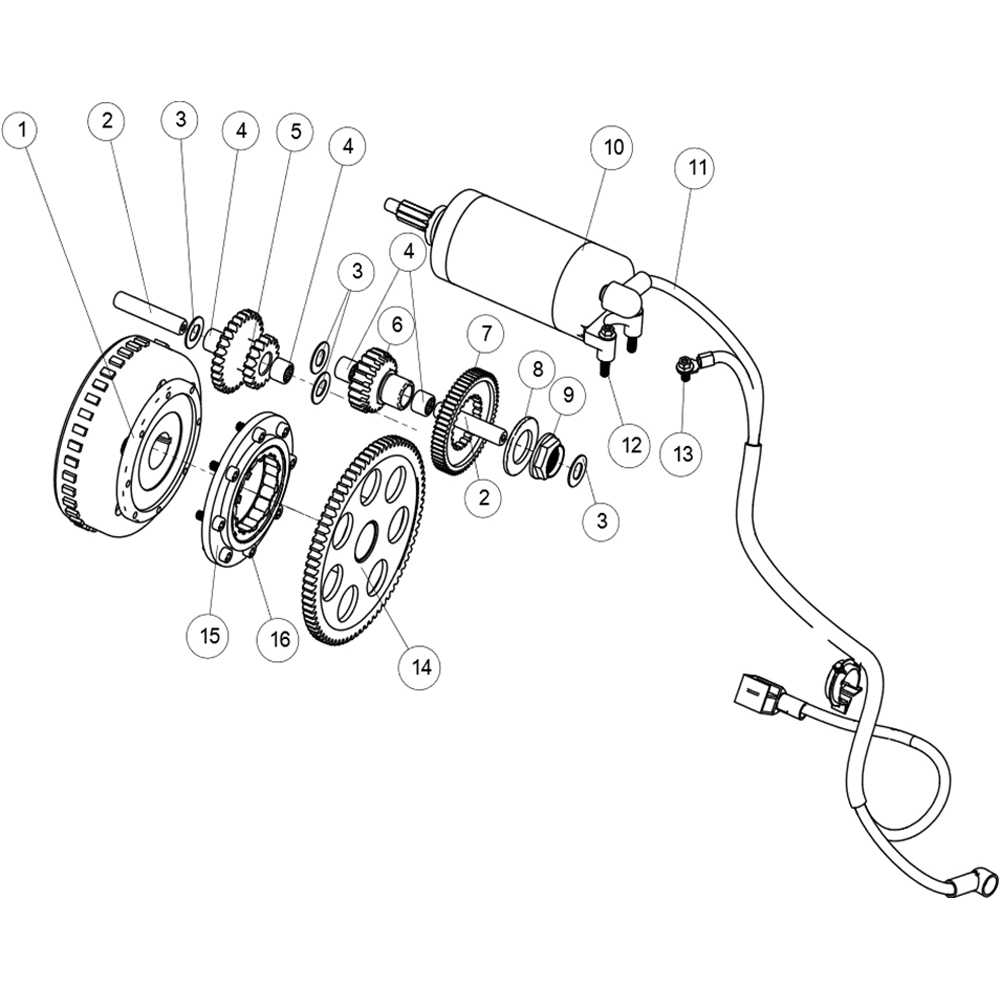

Segway UT10 Crew U5 Starting System Diagram:
