Segway UT10 Crew U5 Top Beam
Segway UT10 Crew U5 Top Beam Parts:
| No. | Part Number | Part Name |
| 1 | U03-C122000-FB0-00 | Right A-pillar Assy(Black) |
| 1 | U03-C122000-FG0-00 | Right A-pillar Assy(Green) |
| 1 | U03-C122000-FR0-00 | Right A-pillar Assy(Red) |
| 2 | U03-C121000-FB0-00 | Left A-pillar Assy(Black) |
| 2 | U03-C121000-FG0-00 | Left A-pillar Assy(Green) |
| 2 | U03-C121000-FR0-00 | Left A-pillar Assy(Red) |
| 3 | U03-C123000-FB0-00 | A-pillar Connection Assy(Black) |
| 3 | U03-C123000-FG0-00 | A-pillar Connection Assy(Green) |
| 3 | U03-C123000-FR0-00 | A-pillar Connection Assy(Red) |
| 4 | U03-C131000-FB0-00 | Front Rear Beam Assy(Black) |
| 4 | U03-C131000-FG0-00 | Front Rear Beam Assy(Green) |
| 4 | U03-C131000-FR0-00 | Front Rear Beam Assy(Red) |
| 5 | U03-C142000-FB0-00 | Rear Right Roof Beam Assy(Black) |
| 5 | U03-C142000-FG0-00 | Rear Right Roof Beam Assy(Green) |
| 5 | U03-C142000-FR0-00 | Rear Right Roof Beam Assy(Red) |
| 6 | U03-C141000-FB0-00 | Rear Left Roof Beam Assy(Black) |
| 6 | U03-C141000-FG0-00 | Rear Left Roof Beam Assy(Green) |
| 6 | U03-C141000-FR0-00 | Rear Left Roof Beam Assy(Red) |
| 7 | U03-C143000-FB0-00 | Rear Back Beam Assy(Black) |
| 7 | U03-C143000-FG0-00 | Rear Back Beam Assy(Green) |
| 7 | U03-C143000-FR0-00 | Rear Back Beam Assy(Red) |
| 8 | U01C10001002 | U01 Top Bar Rear Lower Support Pipe |
| 9 | U03-C132000-DB0-00 | Rear Handle(Black) |
| 10 | GBT005789028 | Bolt M10×1.25×35 |
| 11 | GBT061852001 | Nut M10×1.25 |
| 12 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 13 | GBT005789025 | Hexagon Flange Bolt M10×1.25×20 |
| 14 | GBT005789015 | Hexagon Flange Bolt M8×20 |
| 15 | U01C10010001 | U01 Passenger Handle Assy |
| 16 | GBT000701016 | Screws M8×25 |

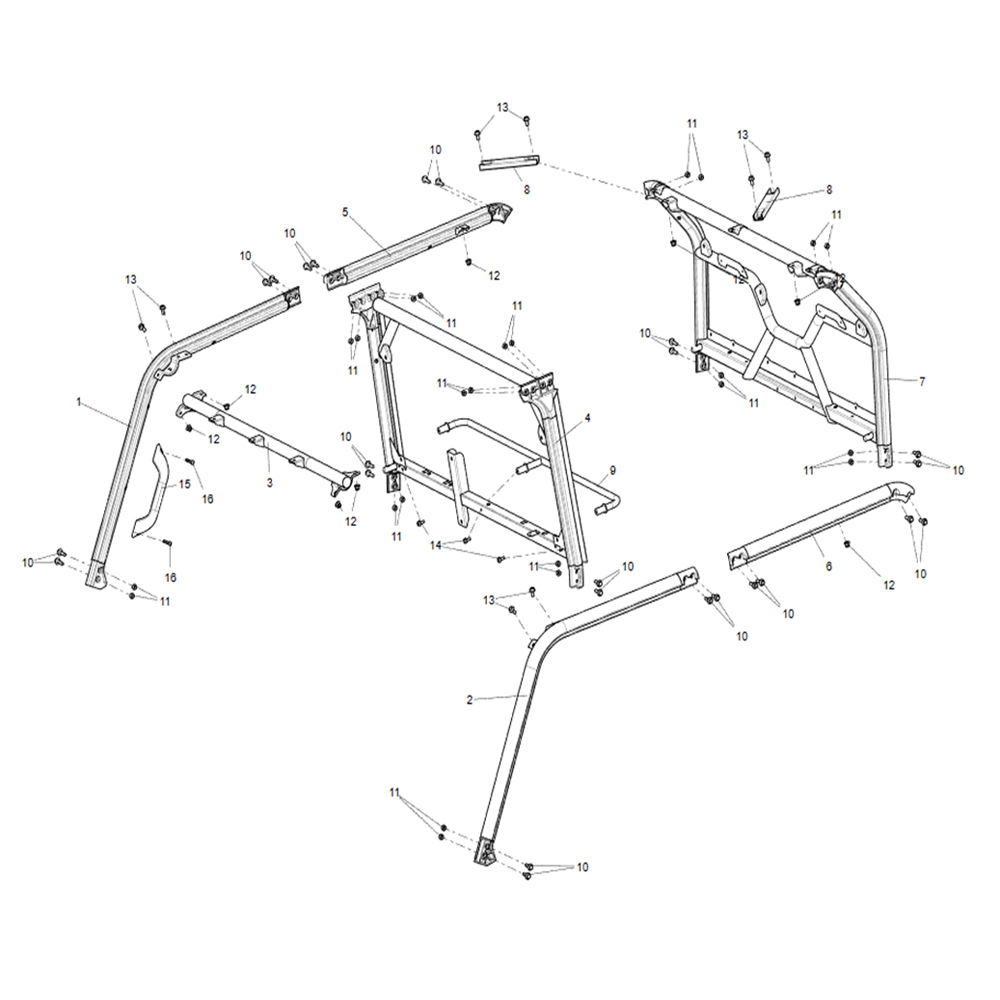

Segway UT10 Crew U5 Top Beam Diagram:
