Name: Segway UT10 Crew U5 Transmission Components (with Diff)
Price: 0.91 CAD
Availability: InStock

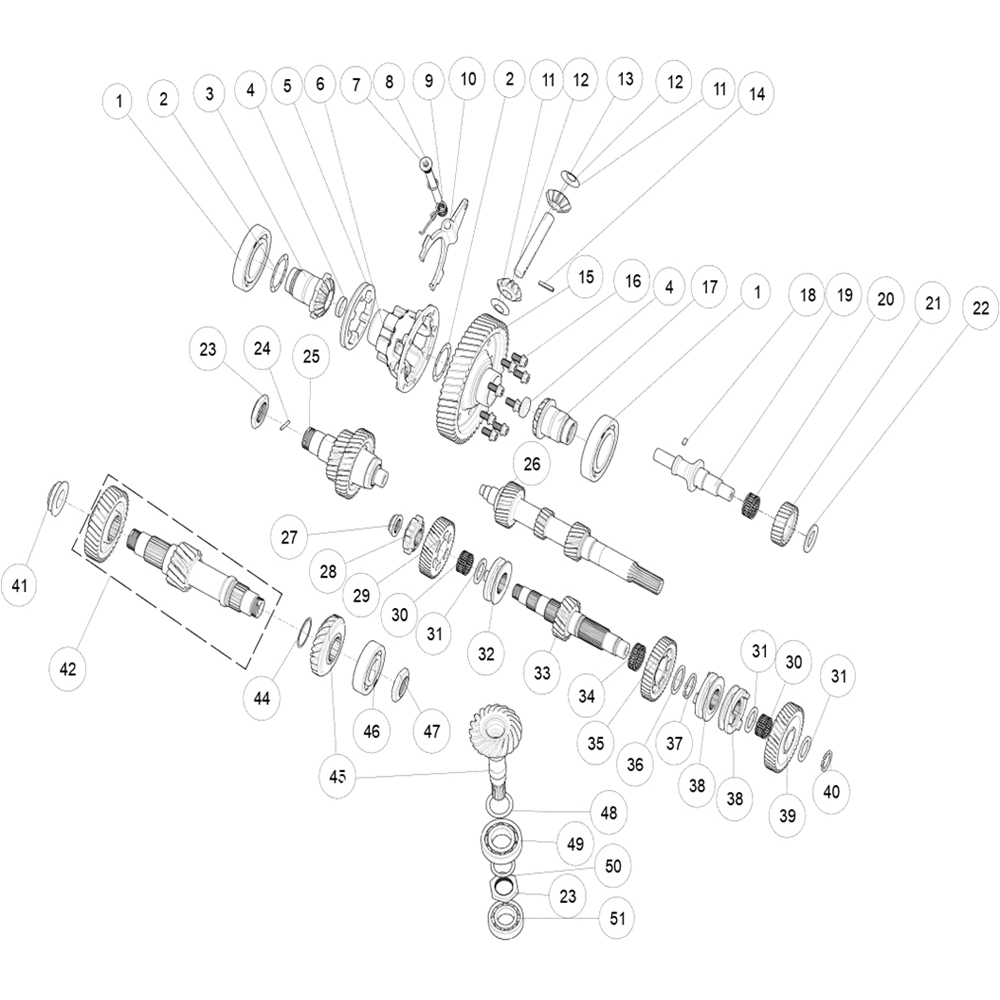

Segway UT10 Crew U5 Transmission Components（with Diff）Parts:

No.	Part Number	Part Name
1	E02F24007001	Nut M30×1.5
2	E02F25004001	Adjusting Shim Of Rear Axle Bevel Gear
3	E02F25201001	Left Rear Half Shaft Bevel Gear
4	E02F25202001	Capping
5	E02F25003001	Rear Differential Output Sleeve
6	E02F25002001	Rear Output Differential Housing
7	E02F25007001	Fork Shaft
8	F01G00005001	O-ring 13.8×2.5
9	E02F25008001	Return Torsion Spring
10	E02F25006001	Rear Output Fork
11	Q01R31700003	Planetary Gear Gasket
12	E02F25102001	Planetary Gear
13	E02F25005001	Rear Output Planetary Gear Shaft
14	GBT008791003	Elastic Cylindrical Pin 5 × Twenty-eight
15	E02F25001002	Rear Axle Output Gear (Differential)
16	Q03F30800001	Bolt M10 × 1.0× 18
17	E02F25101001	Right Rear Half Shaft Bevel Gear
18	GBT001192001	Dowel Pin 6×10
19	E02F27001001	Reverse Gear Idler Shaft
20	E02F22010001	Needle Bearing K30×35×17
21	E02F27002001	Reverse Gear Idler
22	E02F27003001	Washer 26×44×3
23	E02F23003001	Nut M33×1.5
24	GBT000309003	Needle Roller P4×29.8
25	E02F23000001	Three-axis Assembly
26	E02F21000002	Spindle Assembly(Utv)

No.	Part Number	Part Name
27	F01F20403001	Nut M22×1
28	E02F22005001	Parking Gear
29	E02F22002002	H Gear Driven Gear
30	E02F22013002	Needle Roller Bearing K28×33×17
31	E02F22008002	Washer 28×40×2.5
32	E02F22007001	H Gear Engagement Sleeve
33	E02F22001001	Countershaft
34	E02F22011001	Needle Roller Bearing K35×40×13
35	E02F22004001	R Gear Driven Bevel
36	E02F22009001	Spacer 35×46×1.5
37	D01P21207001	Circlip 35×2.5
38	E02F22006001	R/l Gear Coupling Sleeve
39	E02F22003001	L Gear Driven Bevel
40	E02F22012002	Circlip 28×2.5
41	E02F24007001	Nut M30×1.5
42	E02F24005001	Four-axis Assembly
44	E02F24004003	Drive Gear Adjustment Pad 42×48×0.6
45	E02F26001003	Drive And Driven Bevel Gear Combination
46	GBT000276020	Bearing 6305
47	E02F24006001	Nut M30×1.5-lh
48	E02F26002003	Driven Gear Adjustment Pad 35×48×0.5
49	GBT000276010	Bearing 6207
50	E02F26003001	Driven Bevel Gear Shaft Enclosure
51	GBT000276009	Bearing 6206
52	E02F26001002	Driven Bevel Gear Shaft
