Segway UT10 Crew U5 Upper And Lower Crankcase Sub-assembly
Segway UT10 Crew U5 Upper And Lower Crankcase Sub-assembly Parts:
| No. | Part Number | Part Name |
| 2 | E02-C160000-000-01 | Piston Cooling Nozzle |
| 3 | F01000007001 | Bolt M6×35 |
| 4 | GBT001192001 | Dowel Pin 6×10 |
| 5 | F01000017001 | Bolt M8×40 |
| 6 | F02C11003001 | Bolt M6×75 |
| 7 | F01000002001 | Bolt M6×16 |
| 8 | F01G00005001 | O-ring 13.8×2.5 |
| 9 | F02C13000001 | Fuel Passage Assembly |
| 10 | F02C10010001 | Outlet Pipe |
| 11 | F02C10008001 | Plug M14 |
| 12 | F02C10005001 | Screw Plug M24 |
| 13 | F02C10006001 | O-ring Seal 23x2.65 |
| 14 | F02C12000001 | Oil Filter Combination |
| 15 | F02C10007001 | O-ring Seal 18x1.9 |
| 16 | F02C10003007 | Balance Shaft Bearing Component(Blue) |
| 16 | E02-C100030-000-06 | Balance Shaft Bearing Component(Black) |
| 16 | F02C10003004 | Balance Shaft Bearing Component(Red) |
| 17 | F02C10002006 | Crankcase Crankshaft Bushing (Blue) |
| 17 | F02C10002007 | Crankcase Crankshaft Bushing (White) |
| 17 | F02C10002008 | Crankcase Crankshaft Bushing (Red) |
| 17 | E02-C100020-000-06 | Crankcase Crankshaft Bushing (Black) |
| 18 | F02C14000001 | Oil Seal 47x70x12 |
| 19 | F02C11010001 | Bolt M10×1.25×110 |
| 20 | F02C11004001 | Bolt M8×90 |
| 21 | E02-G003000-000-00 | Oil Regulator Valve Unit |
| 22 | E02C00002001 | Nut M10x1.25 |
| 23 | E02C00001001 | Double-ended Stud M10x1.25x60 |

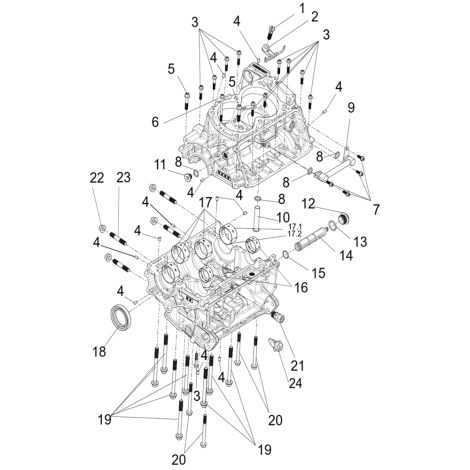

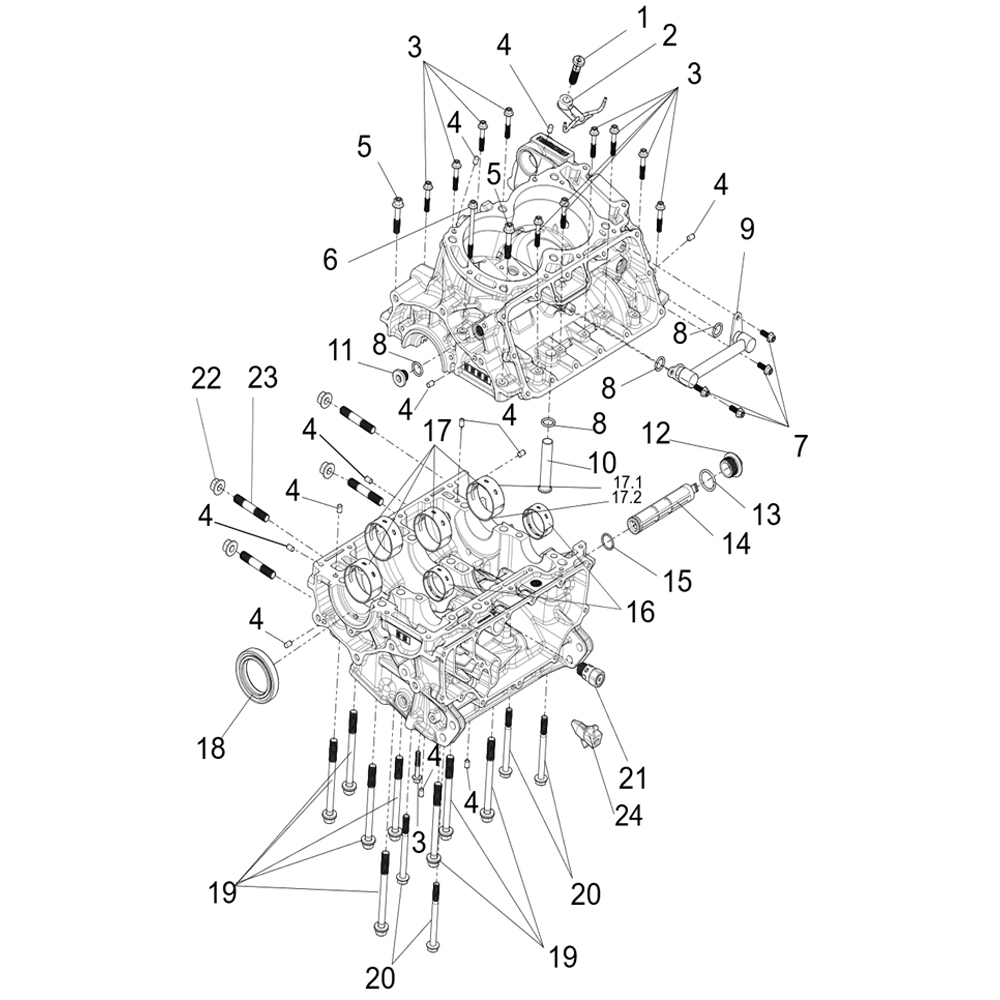

Segway UT10 Crew U5 Upper And Lower Crankcase Sub-assembly Diagram:
