Segway UT10 Crew U5 Upper Crankcase Cover Sub-assembly
CA$0.91
In stock
SKU
Segway UT10 Crew U5 Upper Crankcase Cover Sub-assembly
Segway UT10 Crew U5 Upper Crankcase Cover Sub-assembly Parts:
| No. | Part Number | Part Name |
| 1 | F02C40004001 | Upper Crankcase Cover Gasket |
| 2 | E02-C420000-000-02 | Oil Dipstick(Utv) |
| 3 | E02-C410000-000-02 | Oil Dipstick Tube Assembly (Utv) |
| 4 | F02C40006001 | Oil Dipstick Tube Sealing Ring |
| 5 | F01000002001 | Bolt M6×16 |
| 6 | F01000005001 | Bolt M6×25 |
| 7 | F02C40003001 | Waterway Interface Gasket |
| 8 | F02C40002001 | Waterway Interface |
| 9 | F01000009001 | Bolt M6×55 |
| 10 | F01H00011001 | Hose Clamp |
| 11 | F02C40001003 | Upper Crankcase Cover(Utv) |

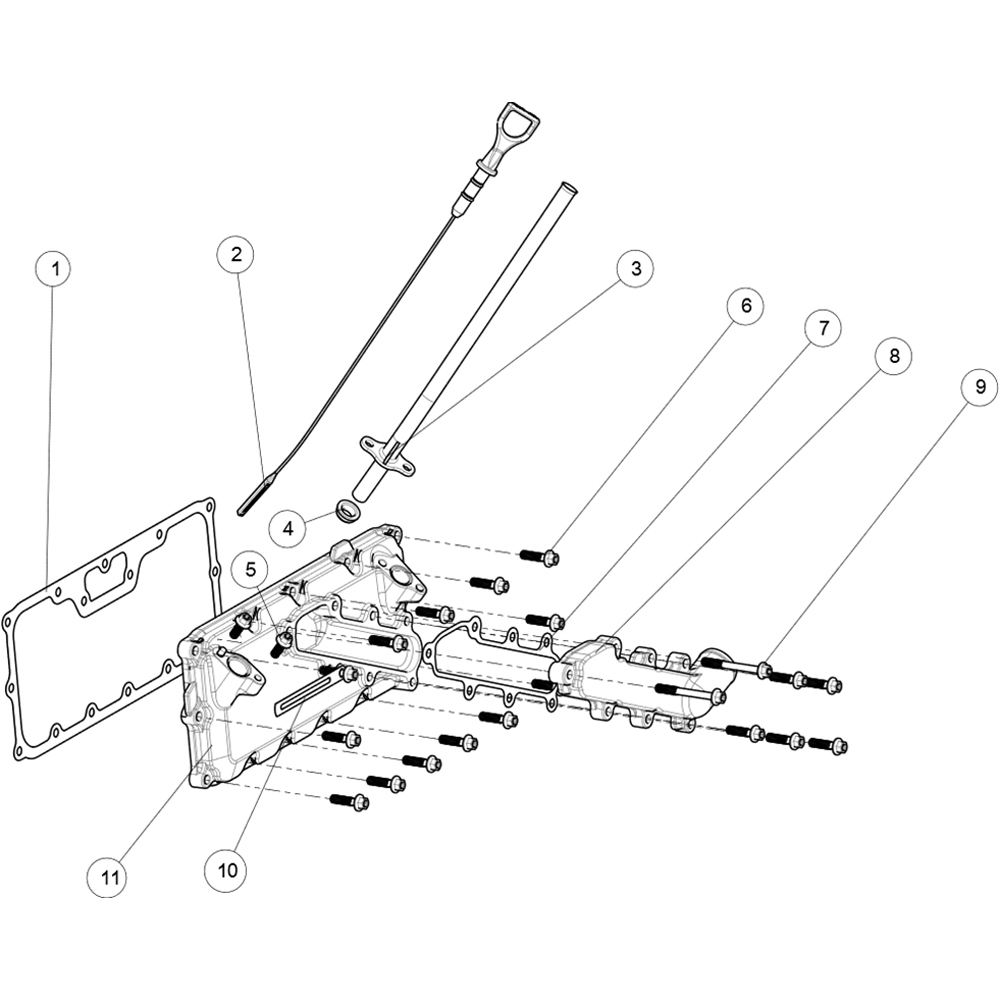

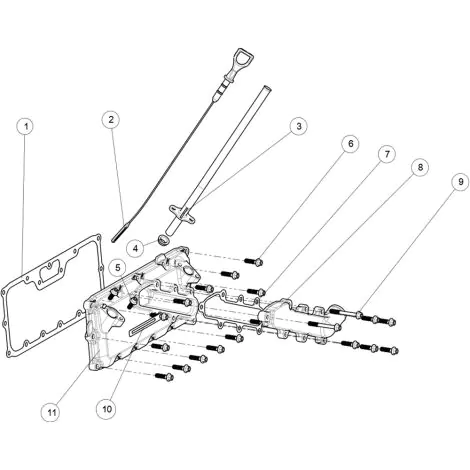

Segway UT10 Crew U5 Upper Crankcase Cover Sub-assembly Diagram:
