STM UTV Rage 6 RZR XP900/Jagged X Primary

Description:

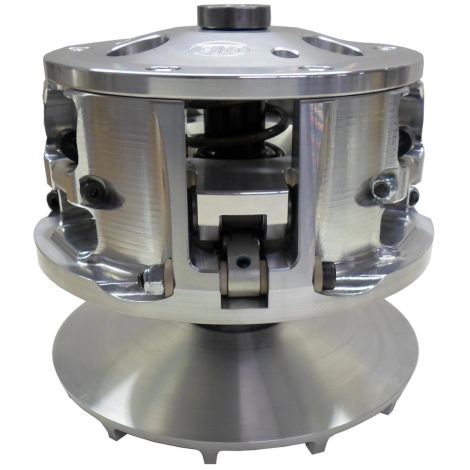

Polaris rage dual stage billet primary

Must be used with a stm tuner driven for best results! Check out the video below

New improved two-way bearing design. The main shaft bearing is now smaller with a 47mm outside diameter allowing a lower initial take-off ratio than our past design. Allows tighter belt deflection, transmission shifting and belt chirp.

A complete billet design that uses a screw-on style spider. Rigid reinforced design for higher horsepower applications. We have designed the Rage 3 to create more over drive than the stock clutch system. To obtain the proper over drive the tuner driven clutch # 299PATVD must be used. These STM clutches will fit under the stock cover with no interference. The Rage 3 is capable of using most cam arms that are available on the market.  We have incorporated a pin size option for every clutch we make by providing a pin conversion design in the movable sheave. Pin conversions are available in 1/4"and 5/16" diameter. We incorporate a fixed pin design that pivots the cam arm between two bushings and attaches the cam arm to the pin providing more durability to the cam arm pivot points.

The cover is designed to use Polaris ATV springs providing a wide variety of spring rates to choose from.

The Rage is calibrated with a spring and set of our own adjustable SUPERTIP CAM ARMS. Each clutch is assembled and set up to run the Polaris OEM belt (stock belt for each machine). Uses the stock primary bolt.

Item numbers 1001070 Primary Clutch Holding Tool, 1001072 STM & Arctic Cat Spider Nut Socket Tool for 1995-2009 & 2016  and either1001020STM Rage 3 & 6 Spider Tool, or 1001032 STM Rage 4 & 8 Spider Tool(depending rage number) is required when removing or installing the spider. Sold separately.

When ordering use this guide to help you pick options

When ordering use this guide to help you pick options

Choose a Model:

EX: RZR pre-2010, RZR 2011-2013, XP……

Choose Rage # :

Pick which arm clutch you want, Rage 3 your basic replacement clutch, Rage 6 is most popular dual stage clutch that will handle most applications even low boost turbo, Rage 8 is for higher HP applications that require heavy cam arms.

Conversion Kit:

You will choose the 1001321 when running the STM weights Choose the 1001323 if you want to run a Polaris style weight for a ¼ pin.

Choose a spring:

The most popular spring is the PATV9 gold that will get you engagement around 2000 to 2500 RPM the red, orange, white, and purple will have a higher engagement with purple being the highest. The bright green is a lower rate spring will engage around 1500 RPM or choose none if you want to use your own spring.

Choose weights:

For the RZR with a Rage 3 choose 45ATVX3, Rage 6 Choose the 45ATVX, RZR with a Rage 8 choose 45ATVX, For the stock XP with a Rage 6 choose 45ATVX, XP Turbo with Rage 6 choose 50ATVX, XP Turbo with Rage 8 choose 45ATVX.

Choose Engine HP:

Let us know about your bike - is it naturally aspirated/stock? Big bore kit? Does it have a turbo? If you have a turbo-how much boost? This gives us an idea of how to set the weights up. Keep in mind we can only get you close with weight set up. Everyone's riding style is different so it’s up to the customer to do the fine tuning!
