Talaria Sting R MX4 Expert Electric Dirt Bike Black (Manitou)
-
10% peak power increase over standard MX4 - now the most powerful bike in its category
-
Talaria Factory adjustable front fork
-
Magura MT-5 brake system with 220mm disc
-
CNC red rear brake disc guard, hubs, pegs, mount, axle block, linkage & sprocket
-
Improved chain guard
-
Black wheel spokes
-
High contrast OLED large display
HIGHLIGHT
BUILT FOR YOUR NEXT ADVENTURE
-
+40% Peak Power over the Sting MX3
-
Manitou Dorado Expert adjustable front fork
-
Magura MT-5 brake system with 220mm disc
-
CNC red rear brake disc guard, hubs, pegs, mount, axle block, linkage & sprocket
-
Improved chain guard
-
Black wheel spokes
-
High contrast OLED large display
-
Improved 45Ah battery: Best-in-class range and battery life
-
Internal gearbox delivers quiet, reliable power (no more breaking/wearing out belts)
-
Regenerative braking (can be adjusted easily via display screen for optimum performance)
-
Fast charging time (3 hours)
-
Improved DC IPM motor, 94% efficiency
WARRANTY
ONE-YEAR LIMITED WARRANTY
Talaria will cover all material costs associated with repairing or replacing any part or accessory found to be defective in material under normal use and maintenance. This limited warranty extends to the initial retail purchaser. This limited warranty is in effect for 1 year from the initial retail sale date a new Talaria from an authorized dealer.
BATTERY
STING is powered by an impressive 60V 45Ah lithium-ion power pack, which is 2700 watt-hours, and easily swappable. The power packs can be exchanged with another fully charged power pack in seconds for limitless range. With electric automobile grade LG 21700 lithium-ion battery cells, state of the art programmed BMS, and optimized internal structure, this battery pack is enabled to ensure the bike brings you safe, hi performance off-road riding.

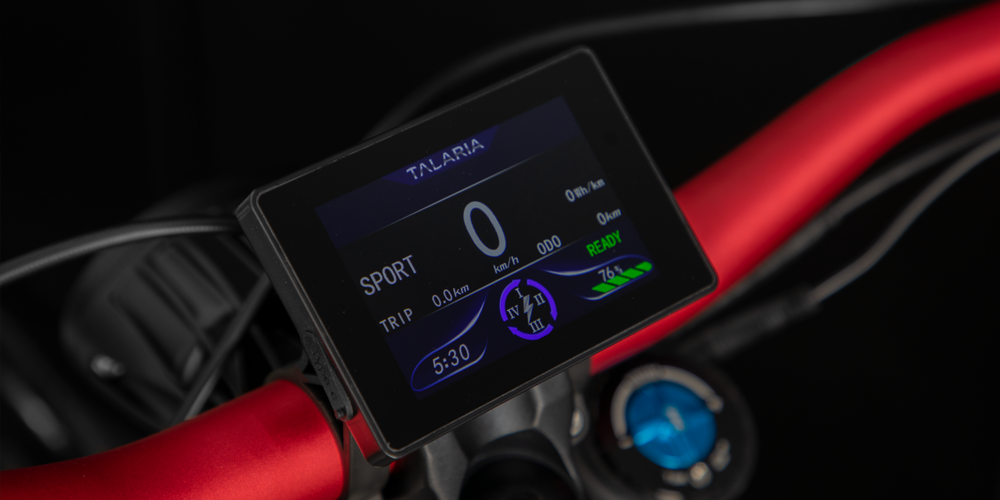

DISPLAY
The dash features a high-contrast OLED display, this will offer riders a clear data display with low power consumption. With CAN communication, the dash is available to have data transfer with the battery pack’s BMS and the motor controller. The display menu provides a range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and more. The dash is also adjustable to allow different settings for different wheel size, sprocket size, motor regen levels, and change between KM/H and MPH to enhance the compatibility of the bike.
CONTROLLER
With the high-quality appropriative hardware, superb layout, and ingenious programming, the controller is enabled to have an extraordinary ability for transient current impact resistance, ultra strong anti – interference, high-precision EABS voltage and discharge current control, error inspection, high and low temperature protection, anti-runaway, and smart energy regeneration. This guarantees to bring the rider a powerful, exciting, and safe riding experience with a respectable range.
POWERTRAIN
The customized combination powertrain design is just perfect for the light weight electric MX bike. The high efficiency brushless permanent magnet synchronous mid-drive motor, with top-class magnet material and advanced processing, is available to output 45N.m peak torque. With exquisitely crafted high accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive systems. It’s time to say goodbye to that broken belt anxiety.
