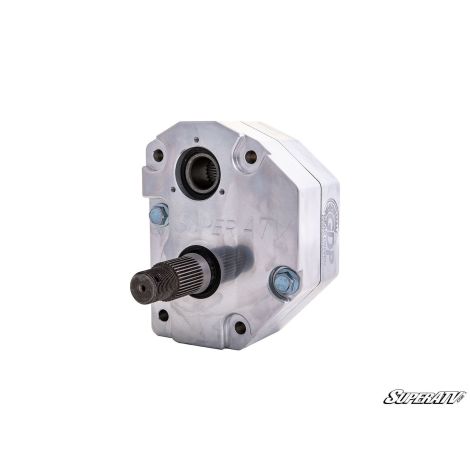

Yamaha Wolverine 4" UTV Portal Gear Lift
Features
-
Available with billet or cast aluminum housing
-
Cool, quiet, precision ground gears made from 9310 alloy billet steel
-
1.5 in. diameter 4340 hardened steel drive shaft
-
No leak bearings and seals
-
Universal hub fits all major bolt patterns
-
Comes complete with all hardware, backing plates, brakes lines and instructions
Details
Gen 3 Portals are Geared for All
SuperATV’s GDP 4” Portal Gear Lift for the Yamaha Wolverine is Geared for All. Choose from 15% or 30% gear reductions and cast or billet aluminum housings so you can optimize for the kind of riding that you do.
Perfect for Mud
If you move up to a 30% gear reduction, you’ll be ready to take on bigger, sloppier mud holes. A 30% gear reduction with 4” portals gives you a big boost in torque so you can run huge tires through deeper bounty holes. It turns your UTV into the ultimate party wagon. When you’re done with the mud, a 30% gear reduction can send you through trails and rocks just as easily.
Perfect for Rocks
Put 4” portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they’re not even there. You’ll have the clearance to get over anything without scratching up your skid plate, and you’ll have room to run bigger tires. These portals are built for boulders.
Perfect for Trails
Get 4” portals and a 15% gear reduction on your Wolverine and take on the trail less traveled. You’ll keep that high speed and turn those bad washouts and hills into nothing more than speedbumps. It’ll show you what your UTV can really do.
Perfect for Work
Get 4” portals and a 15% gear reduction on your Wolverine. You’ll have clearance to get over the ditches and debris around your property and you’ll have the gear reduction to push through ruts and ditches easily all while towing a trailer full of tools. Plus, you’ll still have enough speed to cruise down the road.
Better Gears
Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have strength to withstand every ride.
Stronger Housings by Design
We dare you to find housings stronger than what we make for our GDP portals. Just like everything else that goes into this product, our housings are well researched and long tested. And you get a choice—go with cast or USA-made, CNC-machined 6061 billet aluminum. Regardless of what you pick, you’re getting portal housings with strength and reliability that is unmatched.
-
Our housings are reinforced in all the right places
-
They’re built with better oil flow and gearing forces in mind
-
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:
-
Advanced Thermo-Tork® gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
-
A sealed input gear and double-lipped output seal
-
100% sealing coverage throughout so you can forget about oil leaks
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
|
Yamaha Wolverine Portal Gear Reduction Recommendations |
|
Tire Size |
Required Suspension Setup with 4" Portals |
Recommended 4" Portal Gear Reduction |
|
Up to 28" |
Stock |
15% |
|
Up to 28" |
2" Lift Kit |
15% |
|
29.5" |
2" Lift Kit and removing inner wheel well guard |
30% |
|
Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information. |
⚠ California Proposition 65 Warning ⚠
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
Wheel Requirements:
-
14” or larger wheel required
-
Wheels cannot exceed 5” backspacing
-
If using factory 14" wheels, you must run 1" wheel spacers
-
Not compatible with dual beadlock wheels
